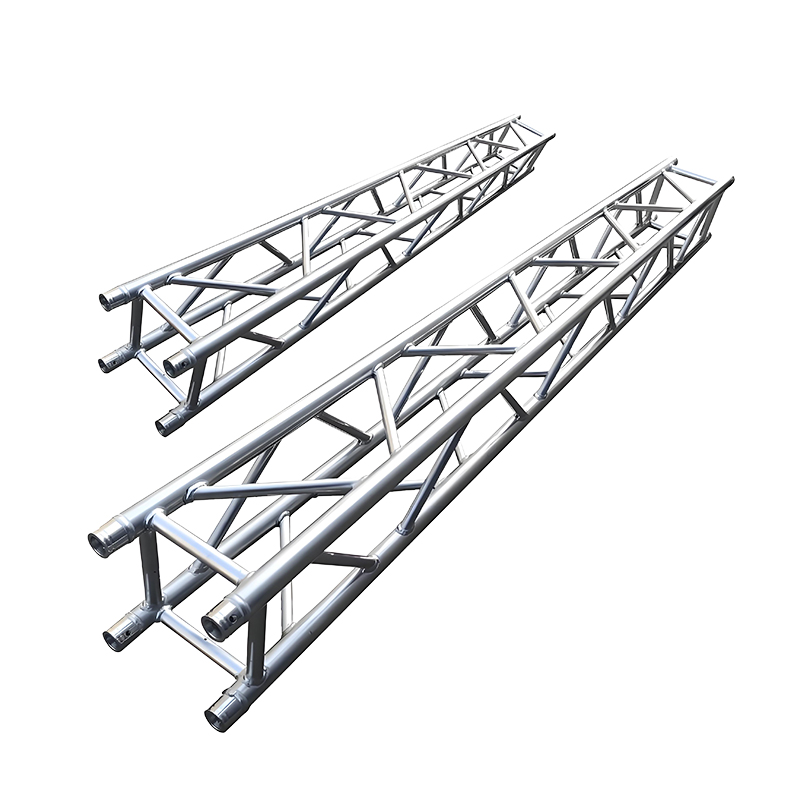

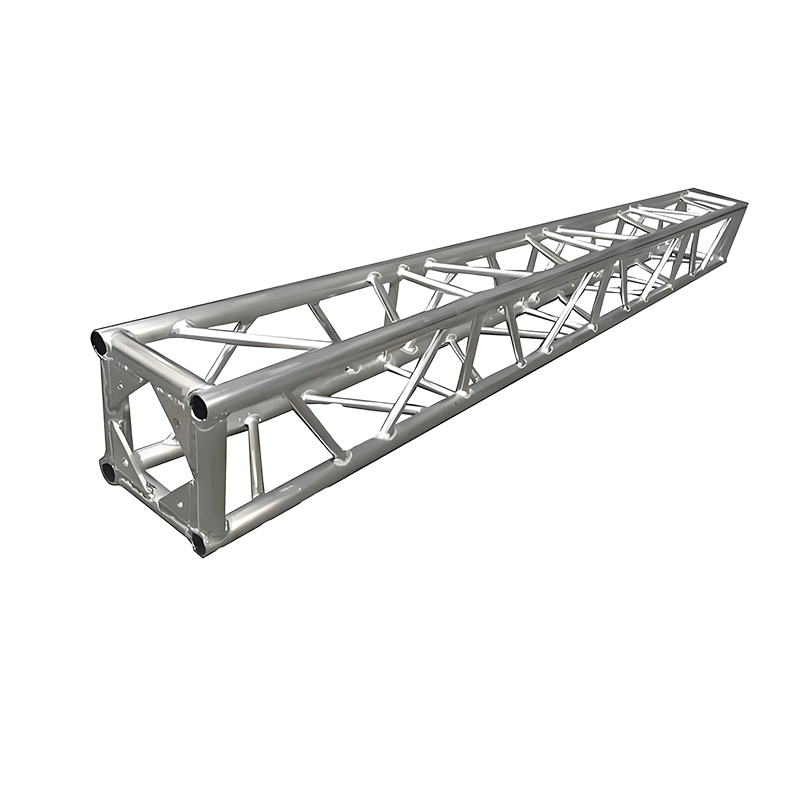

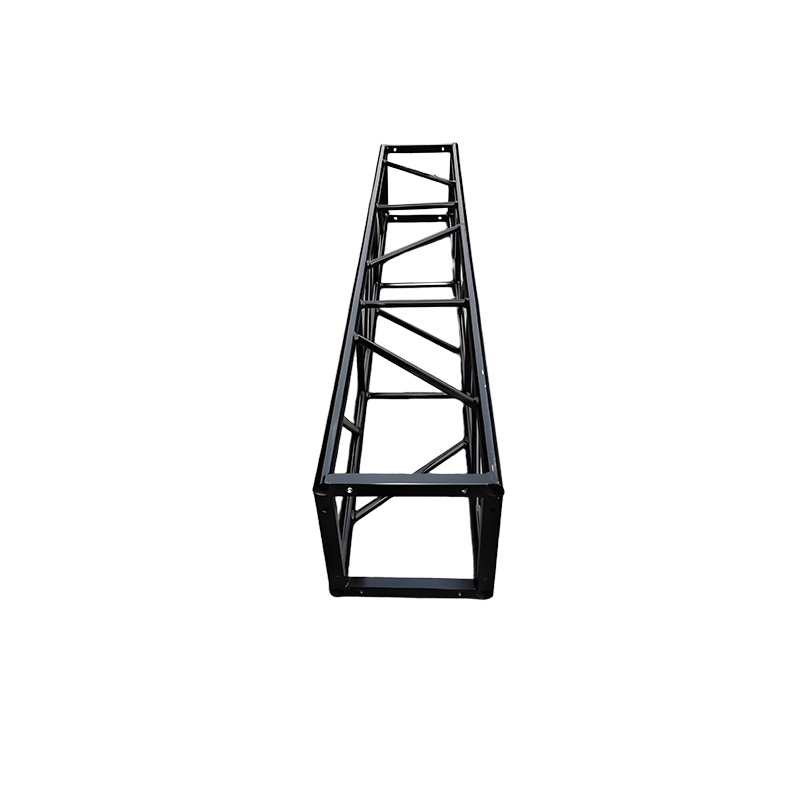

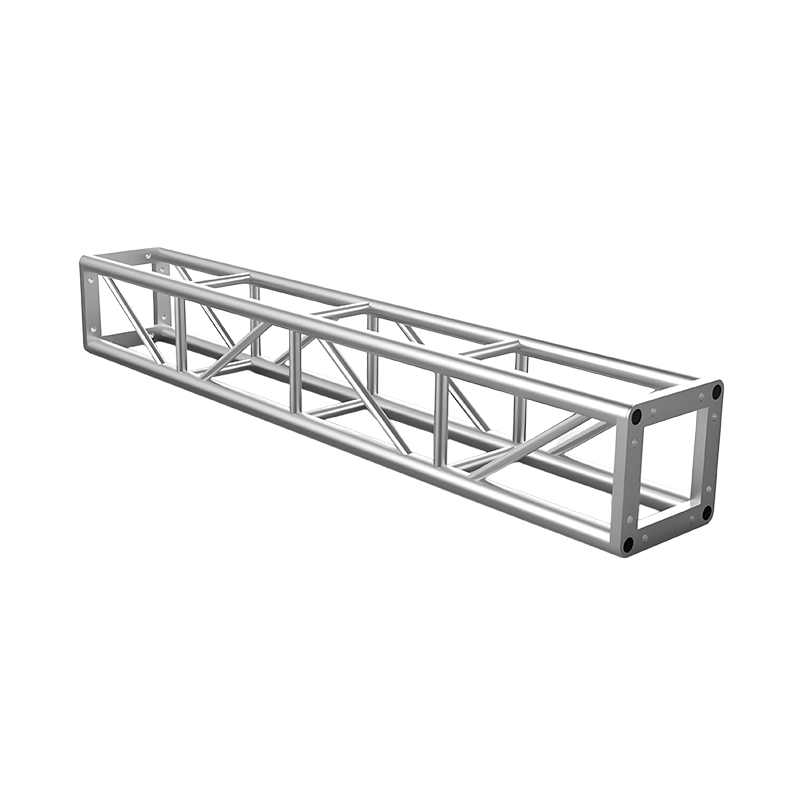

Aluminum Alloy Pin-type
Stage Truss: Features, Composition, Application Range and Transportation
I. Main Features
Aluminum Alloy Pin-Type
Truss Stage Combination of Lightweight and High Strength: Made of aluminum alloy, it weighs only 1/3 to 1/2 of steel trusses of the same specification, facilitating manual handling and installation. Meanwhile, it has excellent load-bearing capacity (with a per-meter load capacity of up to several hundred kilograms), meeting the load requirements of small and medium-sized stages, lighting racks, etc.
Efficient and Convenient Pin-type Connection: Portable
Raya Stage System and Truss Quick assembly and disassembly are achieved through special pins, without the need for complex tools. The connection is tight and stable, significantly shortening the setup time, which is suitable for the rapid deployment of temporary events.
Excellent Corrosion Resistance: The surface of the aluminum alloy undergoes anodizing or electrophoresis treatment to form a dense oxide film, which can effectively resist erosion from moisture, rain, ultraviolet rays, etc., extending the service life, especially suitable for outdoor environments.
Flexible and Diverse Shapes: Aluminum Alloy Pin-Type Truss System It can be combined into various structures such as straight lines, arcs, and triangles according to needs, supporting customized lengths and spans to adapt to different stage layouts and creative designs.
High Safety: The material is non-magnetic and non-sparking, and the overall structure has a stable center of gravity. Equipped with anti-slip pins and reinforced accessories, it can effectively reduce the risk of accidental falling and ensure the safety of performances.
II. Composition
The core material of the aluminum alloy pin-type stage truss is 6061-T6 aluminum alloy, Portable Aluminum Alloy Truss Stage whose main components are:
Aluminum (Al): accounting for about 95%-97%, which is the main body of the base material, providing a lightweight foundation;
Magnesium (Mg): about 0.4%-1.5%, enhancing the strength and corrosion resistance of the alloy;
Silicon (Si): about 0.4%-0.8%, forming a strengthening phase with magnesium to improve the hardness and welding performance of the material;
A small amount of elements such as copper (Cu) and chromium (Cr):
modular truss system further optimizing mechanical properties and processability.
After heat treatment (T6 state), this alloy can meet the strict usage requirements of stage trusses in terms of strength, toughness and fatigue resistance.
III. Application Range
Cultural and Artistic Performance Field:
lightweight modular truss Used for building stage backdrop frames, lighting racks, and audio hanging racks, suitable for indoor and outdoor performances such as concerts, drama performances, and variety shows.
Event and Exhibition Field: As the supporting structure of exhibition booths, backdrop frames for check-in desks, and skeletons of temporary sunshades, it is applicable to scenarios such as exhibitions, press conferences, and celebrations.
Sports Event Field: Building event commentary desks, billboard brackets, and audience area isolation racks, commonly used in small and medium-sized sports meetings and outdoor events.
Commercial Promotion Field: Used for stage construction of temporary promotional activities, brand display racks, and temporary set supports in film and television shooting.
IV. Transportation Characteristics
Compact Storage: It can be stacked for storage after disassembly. The length of a single section of the truss is usually 1-3 meters, and the stacked space is small. For example, 100 meters of trusses can be compressed into several cubic meters, which is convenient for loading by ordinary trucks.
Easy Loading and Unloading:
adjustable modular truss frame Each section of the truss weighs mostly 5-15 kilograms, which can be carried manually without relying on large lifting equipment, reducing transportation and loading/unloading costs.
Adapting to Multiple Transportation Methods: The size meets the standards of road freight, and it can be delivered through logistics lines, less-than-truckload transportation, etc. Moreover, the aluminum alloy material is not easily damaged by bumps, making it suitable for long-distance transportation.
Portable Accessories: Small parts such as pins and connectors can be centrally stored in a special toolbox to avoid loss and improve the orderliness of transportation and storage.
