The world of sports and entertainment is changing fast. Just look at the wild designs popping up everywhere—from the 126-meter floating roof of Tokyo’s Yoyogi National Gymnasium to the 124-meter retractable canopy at Shenzhen Sports Center. Stadiums today are pushing the limits of both design and engineering.
It’s this strong, modular system built to be super precise and flexible—helping venues handle everything from heavy loads and crazy weather to switching between different events in no time.
But here’s the real question: can it really keep up with the massive demands of today’s mega-stadiums?
1. The Rise of Modular Engineering: Why Pin-Lock Trusses Dominate
Traditional stadium construction relied on rigid steel beams and concrete, limiting design flexibility. Today, pin-lock Truss systems—composed of interlocking aluminum or steel nodes secured by precision pins—offer a lightweight, scalable alternative. These systems derive their strength from geometric stability: triangular units distribute forces evenly, minimizing material waste while maximizing load-bearing capacity.
A 2025 industry report highlights that 78% of new stadiums incorporate modular trusses, up from 52% in 2020. The shift is driven by cost efficiency and adaptability. For instance, Shenzhen Sports Center’s 4,000-ton steel roof used a Heavy-Duty Pin-Lock Truss design, enabling a 32-meter vertical lift with millimeter-level precision. Similarly, Tokyo’s 1964 Olympic masterpiece demonstrated how suspended trusses could achieve record spans without internal columns, a principle now refined with advanced pin-lock technology.
The entertainment sector demands structures that transition seamlessly between configurations. A pin-lock truss system for stages addresses this by combining quick assembly with robustness. Unlike welded frameworks, pin-lock joints allow rapid reconfiguration—critical for touring productions and multi-event venues.
Consider a typical concert rig: a 40x40-meter stage supporting 50 tons of lighting, speakers, and pyrotechnics. An Aluminum Pin-Lock Truss reduces setup time by 40% compared to traditional methods, while its corrosion-resistant coating ensures longevity in outdoor settings. Engineers calculate that a 50-meter span using pin-lock trusses can withstand wind loads of 120 km/h, meeting international safety standards.
“The beauty of pin-lock systems lies in their versatility,” explains a structural engineer involved in Shenzhen’s renovation. “We can adjust truss heights, angles, and load distributions on-site, which is impossible with fixed steel.”

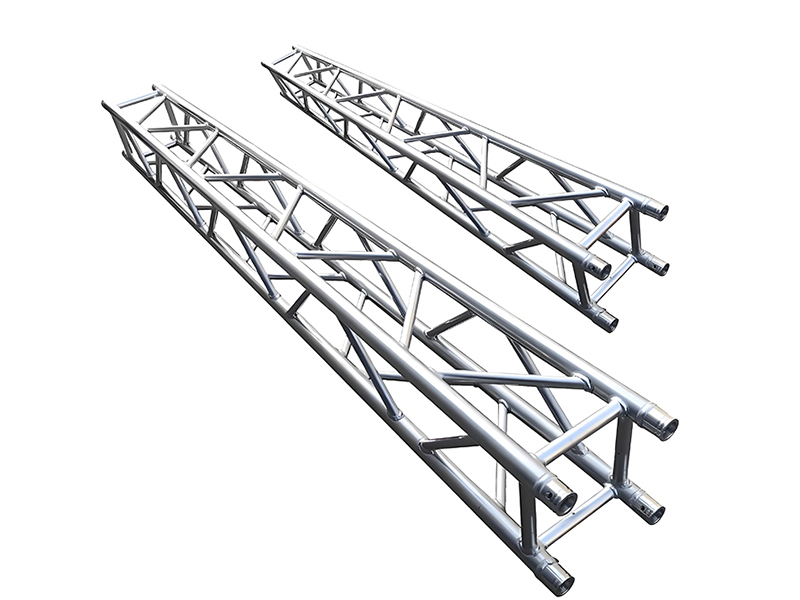

3. Heavy-Duty Pin-Lock Trusses: Bridging the Gap Between Lightness and Strength
Stadiums face dual challenges: supporting massive roofs while resisting seismic activity and wind shear. Heavy-duty pin-lock trusses, fabricated from high-grade steel or reinforced aluminum, strike this balance.
Take the case of a proposed 100,000-seat stadium in Southeast Asia. Its design incorporates a heavy-duty pin-lock truss network spanning 150 meters, with each node rated for 500-ton loads. Finite element analysis (FEA) simulations show that the system reduces material usage by 30% versus conventional designs, cutting costs and construction time.
“Pin-lock joints act like mechanical hinges, distributing stress across multiple planes,” notes a professor of civil engineering. “This prevents localized fatigue, a common issue in rigid frameworks.”
4. Concert Rigs and Beyond: The Entertainment Industry’s Secret Weapon
The global live music market, projected to reach $35 billion by 2026, relies on truss systems that balance safety and creativity. A Pin-Lock Truss for Concert Rigs enables designers to suspend LED screens, laser arrays, and even aerial performers at unprecedented heights.
In 2025, a landmark tour featured a 60-meter-tall pin-lock truss tower, the tallest ever used for a mobile stage. The structure’s lightweight aluminum composition reduced transportation costs by 25%, while its modular design allowed technicians to assemble it in under 12 hours.
“Safety is non-negotiable,” emphasizes a tour production manager. “Pin-lock systems undergo rigorous testing, including load simulations and vibration analysis, to ensure stability during high-energy performances.”
5. Aluminum Pin-Lock Trusses: The Future of Sustainable Construction
As climate concerns mount, the industry is prioritizing eco-friendly materials. Aluminum pin-lock trusses, which are 100% recyclable and require 20% less energy to produce than steel, are gaining traction.
A 2025 study comparing life-cycle emissions found that aluminum trusses reduce a stadium’s carbon footprint by 18% over their lifespan. Additionally, their corrosion resistance extends durability in humid or coastal environments, a boon for venues in tropical regions.
“Aluminum isn’t just lighter—it’s smarter,” argues a sustainability consultant. “When paired with pin-lock joints, it creates structures that are both agile and enduring.”
6. Overcoming Challenges: Precision, Cost, and Expertise
Despite their advantages, pin-lock trusses face hurdles. Manufacturing tolerances must be kept within 0.1mm to prevent joint instability, requiring advanced CNC machinery. Skilled labor is also critical; improper pin alignment can compromise structural integrity.
Cost remains a barrier for smaller venues. While aluminum trusses are cost-effective long-term, their upfront expense exceeds traditional materials. However, innovations like 3D-printed connectors are reducing production costs by 15%, according to a 2025 industry forecast.
7. The Road Ahead: Smart Trusses and AI Integration
The next frontier is “smart” pin-lock trusses embedded with IoT sensors. These systems monitor stress, temperature, and vibration in real time, alerting engineers to potential failures before they occur. AI-driven design tools are also optimizing truss geometries, predicting load paths with 99% accuracy.
“By 2030, every major stadium will use sensor-equipped trusses,” predicts a tech startup CEO. “It’s not just about building stronger structures—it’s about building smarter ones.”
Conclusion: A Structural Revolution in Full Swing
From Shenzhen’s retractable roofs to concert stages that defy gravity, pin-lock trusses are proving their worth. Their modular design, strength-to-weight ratio, and adaptability make them indispensable for venues seeking to balance innovation with safety.
As the industry evolves, the question isn’t whether pin-lock trusses can meet stadium demands—but how far they can push the boundaries of what’s possible. The answer, it seems, is limitless.
