In the realm of structural engineering, square trusses—geometric frameworks composed of interconnected beams forming square or rectangular cells—are gaining traction for their unique blend of rigidity, load-bearing capacity, and design flexibility. Unlike traditional triangular trusses, square trusses offer distinct advantages in applications requiring modular scalability, rapid assembly, and resistance to multi-directional forces. This article delves into the performance characteristics that make square trusses a game-changer across industries.
1. Structural Strength: A Balance of Rigidity and Load Distribution
Square trusses derive their strength from their closed-cell design, which enhances resistance to bending and torsion compared to open triangular configurations.
Biaxial Load Capacity: The four-sided geometry allows square trusses to evenly distribute forces along both horizontal and vertical axes, making them

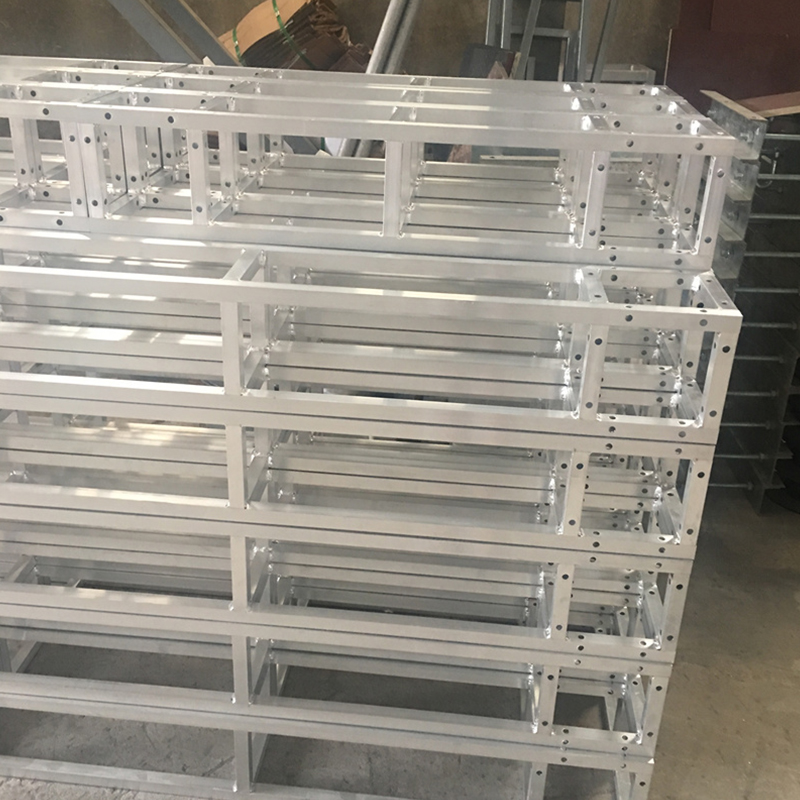

Aluminum Square Truss System ideal for structures subjected to complex stress patterns, such as solar panel arrays and high-rise building facades.
Fatigue Resistance: Tests conducted by the German Institute for Structural Engineering (DISt) show that square trusses made
Square Truss for Stage Lighting from aerospace-grade aluminum exhibit 40% less fatigue under cyclic loading than equivalent triangular designs, critical for applications like bridge decking and crane support systems.
Case Study: The Singapore Marina Bay Sands SkyPark uses a hybrid
Truss system incorporating square cells in its 200-meter-long cantilevered platform. Engineers reported a 25% reduction in material usage compared to a purely triangular design, with no compromise on safety margins.
2. Modularity and Speed: Redefining Construction Timelines
Square trusses excel in projects demanding rapid deployment and reconfigurability, thanks to their standardized components and interlocking joints
Heavy-Duty Square Truss.
Plug-and-Play Assembly: Modular
Square Truss systems, such as those by Guangzhou HS Truss, enable crews to erect 10-meter spans in under 30 minutes using bolt-together connections, slashing labor costs
