The world of event production is a symphony of engineering and artistry, where the unseen backbone of every spectacular show is its structural rigging. For ages, the Square Truss has been the go-to option for builders and designers, like the king of the construction world. But now, with tech zooming ahead and what people want constantly changing, there's a big question popping up: Can the old-school Aluminum Square Truss System still stand tall when faced with all these new materials and cool, fresh designs? This industry analysis really gets into the nitty-gritty of square Truss technology—like what it's made of, how it's used, and how the field is changing—to figure out why it's still so valuable and where it's headed next.
Introduction: The Bedrock of Modern Event Infrastructure
Before a single light flashes or a speaker resonates, a complex skeleton of metal is erected. This framework, primarily composed of trussing, is responsible for supporting tonnes of expensive equipment and, most importantly, ensuring the safety of everyone below. The square truss, characterized by its four-sided, box-like profile, has become the industry standard. Its dominance isn't accidental; it is the result of a perfect marriage of structural integrity, versatility, and reliability. This article explores the material science behind square truss, its key applications, and how it continues to adapt to the needs of modern production companies, concert tours, and permanent installations.
Deconstructing the Square Truss: A Lesson in Aluminum Alloys and Engineering
At its core, a square truss is a lightweight, rigid structure based on a series of triangles forming a three-dimensional beam. The triangular design is fundamental to its strength, efficiently distributing load and resisting bending and torsional forces. However, the true hero of the story is the material from which it is most commonly made: aluminum.
The vast majority of high-quality square truss systems are fabricated from 6061-T6 or 6082-T6 aluminum alloy. This choice is deliberate and based on a critical set of material properties:
High Strength-to-Weight Ratio: Aluminum alloys provide exceptional tensile strength while remaining remarkably lightweight. This reduces the overall dead weight of the rig, which in turn minimizes shipping costs, eases handling for crew, and allows for faster load-in and load-out times. This is the single most important economic and logistical factor behind its popularity.
Corrosion Resistance: Unlike steel, aluminum naturally forms a protective oxide layer, making it highly resistant to rust and corrosion. This is crucial for equipment that frequently travels, faces varying humidity levels, or is used in outdoor events.
Machinability and Flexibility: Aluminum can be easily extruded into complex shapes, welded, and machined with precision. This allows manufacturers to create intricate connector systems (spigots, lugs, or bolt-through designs) that ensure secure and rigid connections between truss sections.
Durability and Longevity: A well-maintained aluminum square truss system can last for decades, providing an excellent return on investment for rental houses and production companies. Its ability to withstand the physical demands of touring—being constantly assembled, disassembled, and transported—is unparalleled.

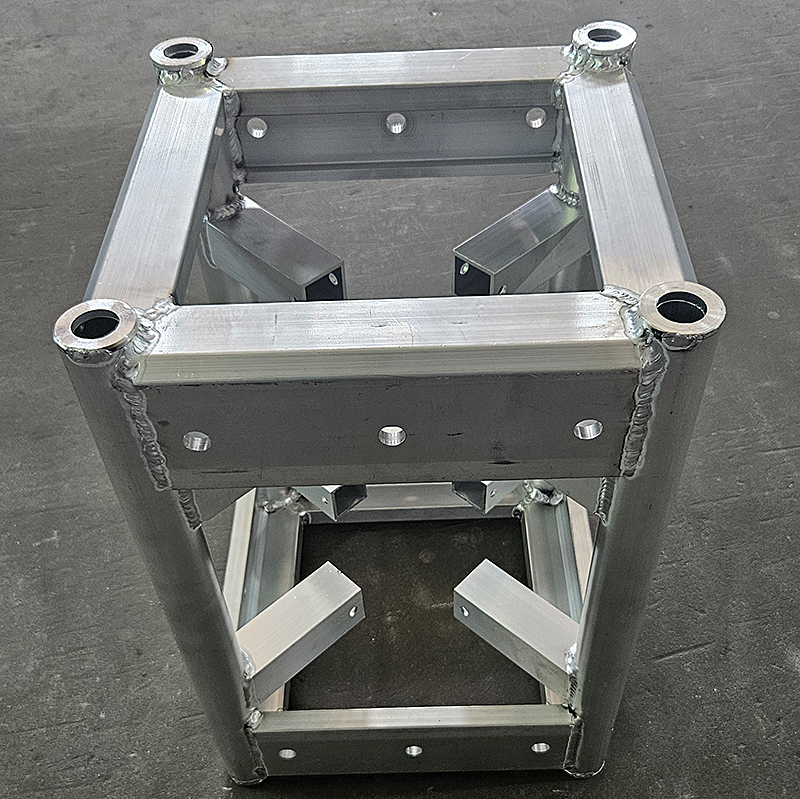

The engineering doesn't stop at the alloy. The wall thickness of the tubing, the design of the internal webbing, and the quality of the welding are all critical factors that differentiate a standard truss from a truly Heavy-Duty Square Truss capable of supporting immense point loads.
The primary application of the square truss is, without a doubt, in the realm of stage lighting and audio reinforcement. Its design offers distinct advantages over circular or triangular truss profiles in these applications.
Flat Surfaces for Optimal Mounting: The flat sides of a square truss provide a stable and predictable mounting surface for lighting fixtures, moving heads, PAR cans, and audio speakers. Clamps seat more securely, reducing the risk of fixtures shifting or rotating unexpectedly during a performance. This stability is non-negotiable for the precise, programmed movements of modern automated lighting.
Efficient Cable Management: The internal cavity of a square truss acts as a natural raceway for power and data cables (DMX, Ethernet). This allows crews to run cables neatly through the truss, protecting them from damage and creating a clean, professional look free of dangling wires that can be a tripping hazard and detract from the visual production.
Versatile Configuration: Square truss for stage lighting setups can be configured in countless ways: single hangs above a stage, goalpost structures on either side, or complex overhead grids. This flexibility lets lighting designers and directors of photography (for film sets) create the exact look and feel required for the production.
When the Load Gets Heavy: The Domain of Heavy-Duty Square Truss
Not all events are created equal. While a standard square truss might suffice for a corporate meeting with a few LED panels, a major concert tour or a large-scale installation demands a more robust solution. This is where heavy-duty square truss comes into play.
Heavy-duty square truss is characterized by several key features:
Larger Dimensions: Common sizes include 500mm x 500mm (approx. 20" x 20") or even larger, providing a greater section modulus and higher load capacity.
Increased Wall Thickness: The aluminum tubing used has a significantly thicker wall, often reinforced with additional internal gusseting or double-webbing to prevent buckling under extreme stress.
Superior Connection Hardware: These systems utilize industrial-grade steel or high-tensile aluminum connectors with multiple bolt points to ensure the entire structure acts as a single, unified beam.
These trusses are engineered to handle the immense weight of large video walls, arrays of line-array speakers, and complex scenic elements, making them the undisputed choice for touring acts and large-scale festival stages.
The Competitive Landscape: Aluminum Square Truss System vs. Alternatives
The aluminum square truss system does not exist in a vacuum. It faces competition from other materials and designs, primarily steel trussing and modern composite materials.
Steel Truss: Steel offers a higher ultimate tensile strength than aluminum and is often less expensive upfront. However, its significantly heavier weight increases shipping costs and requires larger crews and heavier machinery for rigging. Its susceptibility to rust also makes it less ideal for touring. For permanent installations where weight is less of a concern, steel can be a cost-effective alternative, but for mobility, aluminum wins.
Carbon Fiber & Composites: Emerging composite materials offer an even better strength-to-weight ratio than aluminum and are completely immune to corrosion. The barrier to their widespread adoption is overwhelmingly cost. The price of a carbon fiber truss system is often an order of magnitude higher than its aluminum counterpart, placing it out of reach for most of the market. For highly specialized applications where every kilogram saved is critical (e.g., certain touring applications), composites are beginning to find a niche.
Despite these alternatives, the aluminum square truss system remains the most balanced solution, offering the best compromise of cost, weight, strength, and durability for over 90% of applications.
Conclusion: An Enduring Legacy Built on Adaptive Strength
So, is the square truss still the unbeatable champion? The evidence suggests a resounding yes. The fundamental material advantages of aluminum alloy, combined with the intelligent engineering of the truss design itself, have created a product that is exceptionally difficult to supersede.
While new materials like composites will continue to evolve and find their place at the very top of the market, the aluminum square truss system remains the workhorse of the global events industry. Its versatility for stage lighting, its capacity to be scaled into a heavy-duty square truss, and its proven track record of safety and reliability ensure its continued dominance. The future of square truss is not one of obsolescence but of refinement—through improved coating technologies, even more efficient connector designs, and smarter, integrated systems for power and data transmission. For the foreseeable future, the sky above any stage will continue to be held up by the unwavering strength of square truss.
