Industrial-Grade Quality, Solid Foundation for Stages: Industrial-Grade Modular Stage Platform Adapts to High-Demand Scenarios
From industrial exhibitions for heavy equipment demonstrations, to thousand-person corporate summits, and permanent theater stages for long-term use, stage platforms require extremely high load-bearing capacity, durability, and stability. The Industrial-Grade Modular Stage Platform takes "super strong load-bearing + long-lasting durability" as its core. It is not only an independent high-specification stage solution, but also deeply integrable with the Raya Stage System, working in synergy with the full range of components to build a solid and reliable stage foundation for various high-demand scenarios.
Core Performance: Industrial-Grade Standards, Balancing Strength and Flexibility

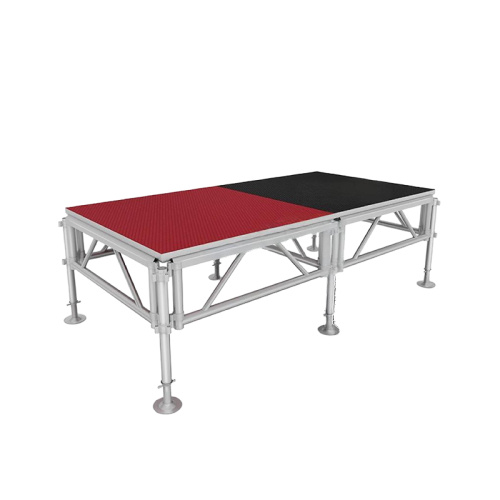

The Industrial-Grade Modular Stage Platform adopts a composite structure of industrial-grade high-strength steel and aluminum alloy. After precision processing and load testing, its load-bearing capacity reaches over 800kg per square meter, far exceeding the standard of ordinary stage platforms. It can directly support heavy machinery, large exhibits, and other equipment. At the same time, it adopts a modular design, supporting free assembly into different sizes and heights to adapt to complex stage shapes such as stepped and irregular ones. Compared with the Aluminum Alloy Plug-in Stage, it is slightly heavier but has better load-bearing performance. It can be flexibly used according to scenario needs, meeting both the high-strength requirements of industrial scenarios and the diverse styling needs of large-scale events.
System Synergy: Seamless Integration into Raya Stage System, Building Full-Scenario Solutions
As the core load-bearing module of the Raya Stage System, the Industrial-Grade Modular Stage Platform can be efficiently adapted to the full range of core components to form a high-specification stage solution without shortcomings:
When matched with the Steel Truss System, the former serves as the main stage to bear heavy equipment, while the latter builds a top heavy-duty structure to hang large LED screens and industrial lamps. Both meet industrial-grade quality standards and have matching load-bearing performance, ensuring the safety and stability of the overall structure—perfect for industrial exhibitions and heavy product launch events.
When combined with aluminum truss and Aluminum Stage Truss, it can create a hybrid solution of "industrial-grade platform + lightweight structure". The platform bears the core weight, while the trusses are responsible for creative styling and hanging lightweight equipment, balancing strength and design sense—suitable for corporate summits and large-scale performances.
When used with Raya Scaffolding, it provides stable support for building stage edge protection and equipment maintenance channels. Especially in permanent theater stages for long-term use, it can assist in daily maintenance and detail optimization of the platform, extending the service life of the overall system.
Scenario Value: Adapting to High-Demand Scenarios, Solving Strength Pain Points
The industrial-grade quality of the Industrial-Grade Modular Stage Platform is particularly critical in various high-load and long-term use scenarios:
At industrial exhibitions, it can directly support heavy machine tools, construction machinery, and other exhibits. When matched with the Steel Truss System to build a heavy-duty background frame, no additional reinforcement is needed, ensuring the safety of exhibit display and demonstration.

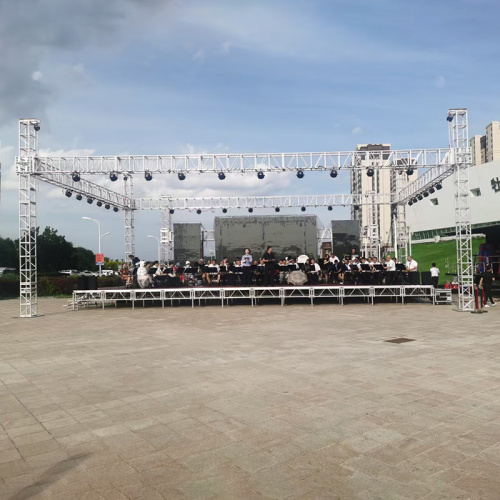

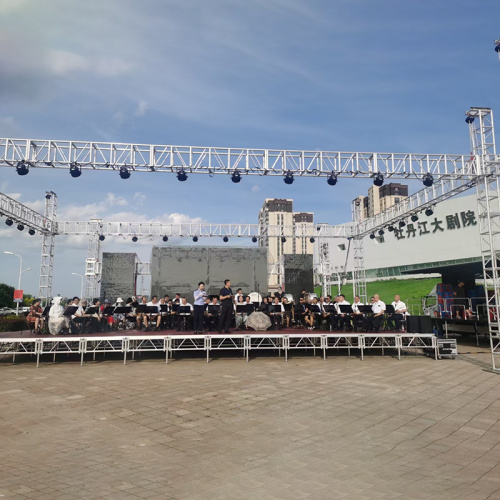

At large corporate annual meetings, it can be combined with Aluminum stage truss to build a multi-layer stage. The platform stably supports a thousand people standing at the same time, while the trusses create exquisite lighting shapes, balancing practicality and aesthetics.
In the renovation of permanent theater stages, the modular design facilitates construction in divided areas. With the assistance of Raya Scaffolding for high-altitude assembly and debugging, the renovated stage can be used stably for a long time, reducing long-term maintenance costs.
From independent stage platform application to the overall Raya Stage System solution, the Industrial-Grade Modular Stage Platform centers on industrial-grade quality, linking the Aluminum Alloy Plug-in Stage, Steel Truss System, Aluminum Truss, Aluminum Stage Truss, and Raya Scaffolding. It not only solves the pain points of ordinary stages such as "insufficient load-bearing capacity and poor durability", but also meets the flexible styling needs of high-demand scenarios, making every stage a safe and reliable core carrier.
I. Core Features: Balancing "Portability" and "Practicality"
1. Extreme Lightweight: Effortless Transportation
Weight Control: modular stage platform syste A single core module (including frame and panel) weighs 8-12kg (conventional sizes: 1.0m×0.8m, 1.2m×0.6m), which can be carried by an adult woman with one hand or by teenagers with two people collaborating. The largest module (1.2m×1.2m) weighs ≤15kg, eliminating the need for machinery or multiple people for transportation.

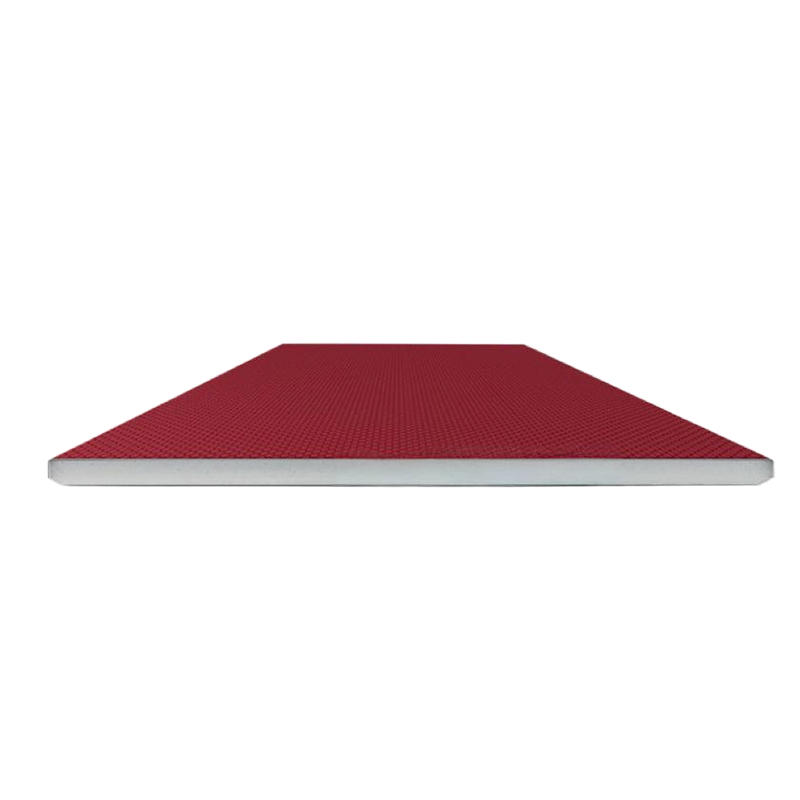

Material Selection:multi use stage platform Frames are made of high-strength aviation-grade aluminum alloy (e.g., 7005-T6, 15% lighter than standard 6061-T6, with a tensile strength ≥510MPa). Panels are preferably honeycomb-structured PVC boards (thickness: 12-15mm, weight ≤4kg/㎡) or ultra-thin anti-slip aluminum plates (thickness: 1.0mm, weight ≤2.8kg/㎡). Heavy solid wood or high-density boards are avoided to control weight from the source.
2. Ultra-Convenient Assembly/Disassembly: versatile stage platform design Zero-Threshold Operation
Three-Step Setup: No complex tools are required;Demountable Stage the process is simplified to "unfold the frame → lock the support legs → lay the panels." One person can set up a 3-4㎡ stage (e.g., two 1.2m×1.2m modules spliced together) within 10 minutes. Quick assembly demountable stage Disassembly only involves folding the frame and retracting the support legs, taking ≤5 minutes. Quick-Assembly Structural Design: Frames use "dual-axis folding hinges" that lock automatically when unfolded (no manual screw tightening needed). Support legs adjust height via "press-type spring pins" (conventional adjustment range: 30-60cm, suitable for different ground surfaces), ensuring precise height positioning and resistance to loosening. "Hidden buckles" Aluminum demountable stage at module splicing points allow fixation with a light press after alignment, preventing misalignment.
Error-Prevention Details: Module edges are marked with "splicing arrow indicators" (e.g., "→ Align ←") to help even beginners align quickly. A "level bubble" is embedded in the bottom of each support leg for intuitive judgment of ground flatness, preventing stage tilting.
3. Minimal Storage Volume: Space-Saving
Folded Dimensions:Modular demountable stage A single 1.2m×1.2m module, when folded via dual-axis, has a thickness ≤10cm and length ≤60cm. It can stand upright against a wall (occupying ≤15cm of wall width) or lie flat on top of a wardrobe. A 10㎡ stage, when disassembled, can fit into just 2 28-inch suitcases or 1 large storage bag, no dedicated warehouse required. Transportation Compatibility: It fits in the trunk of a family car (a 5-seater car can hold 6-8 1.2m×0.6m modules), on the back seat of an electric bike (small modules can be placed flat), or on subway luggage racks (meeting size limits when folded). This meets transportation needs for "Event demountable stage multi-location roadshows and cross-city events" without the need for additional vehicle rentals.
4. Basic Safety Assurance: Lightweight but Not Flimsy
Load-Bearing Capacity: Standard models have a static load-bearing capacity ≥200kg/㎡ (capable of supporting 2-3 adults at once, or holding small audio equipment and projectors). High-load models (with frame wall thickness ≥1.5mm) can reach 300kg/㎡. Load limits are clearly marked to avoid overload risks.
Anti-Slip and Stability: Panel surfaces undergo "Demountable stage platforms embossed anti-slip treatment" (e.g., diamond-embossed PVC, small raised particles), with a friction coefficient ≥0.5 in dry environments and ≥0.4 in slightly humid environments to prevent slipping. The bottom of each support leg is equipped with a "5cm-diameter silicone anti-slip pad" to increase friction with the ground, ensuring stable placement on concrete, floor tiles, lawns, and other surfaces.
Structural Strength: Key frame joints (folding points, support leg connections) are "thickened and reinforced" (wall thickness ≥1.2mm). When unfolded, pressing the panel causes no obvious sagging (deformation ≤0.3mm/m), preventing frame bending after long-term use.
