Premium Aluminum Stage Truss: A Comprehensive Analysis of Core Advantages, Mainstream Types, and Customized Solutions 1. Lightweight and Efficient Handling
Aluminum alloy has a density only one-third that of steel, Backdrop Truss for Photo Booths reducing the weight of trusses with the same specifications by over 50%. For instance, a 400×400mm Aluminum Truss weighs approximately 8-10 kg per meter, whereas an iron Truss of the same size reaches 15-20 kg. This characteristic significantly cuts transportation costs, enables single-person handling, and boosts construction efficiency by 30%-50%. 2. Corrosion Resistance and Longevity
Aluminum naturally forms a protective oxide film on its surface, Background Truss for Stage Design eliminating the need for additional anti-corrosion treatments. In coastal, high-humidity environments, its service life can exceed 10 years, far outlasting iron trusses (3-5 years). For example, the National Centre for the Performing Arts’ mobile stage system employs aluminum trusses with a maximum single-piece span of 25 meters, maintaining stable performance after six years of use. 3. High Load-Bearing Capacity and Safety
Premium aluminum trusses typically support loads of 600 kg or more, with some models capable of bearing over 1 ton. For example, Adjustable Background Truss a 400×600mm truss can safely span 20 meters, meeting the demands of large-scale concerts for hanging lighting and audio equipment. 4. Aesthetic Appeal and Versatility

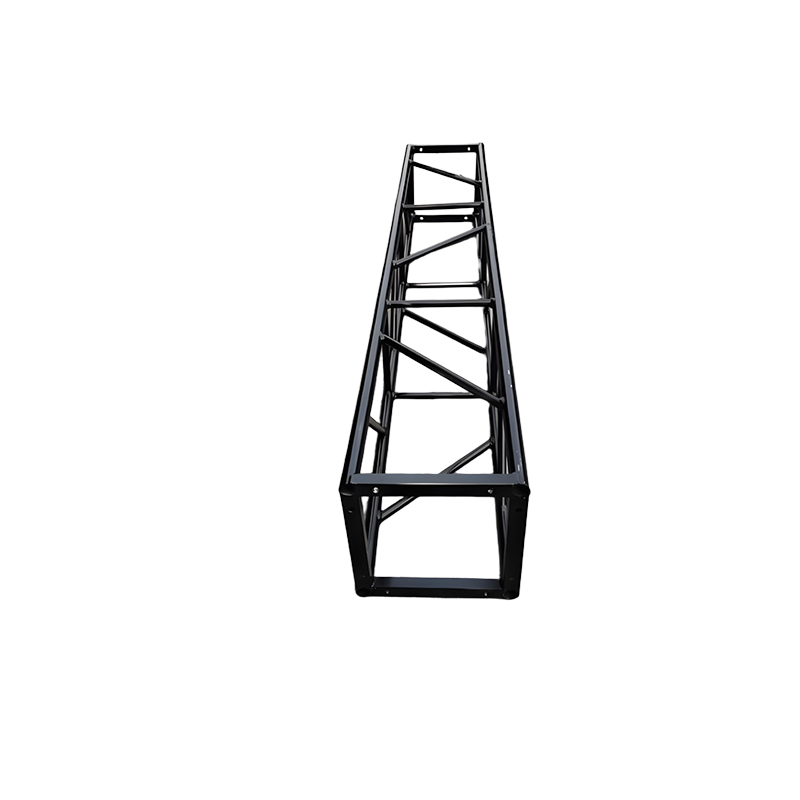

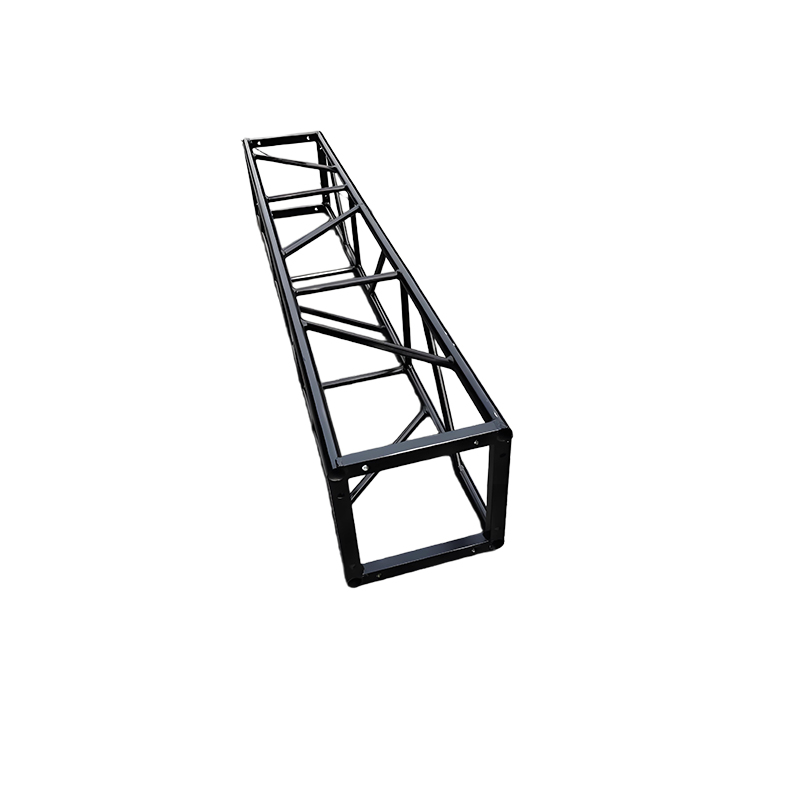

Aluminum trusses can be coated in various colors (e.g., black, white, silver) to harmonize with stage lighting.Lightweight Backdrop Truss System The sleek and unadorned lines, paired with a modular design, bestow upon it the ability to be swiftly assembled. As a result, it gracefully moves across the stages of theaters, concerts, exhibitions, weddings, and other events, like a nimble dancer. II. Mainstream Types: Flexible Selection Based on needs
1. Classification by Shape
Standard Types: Square and triangular trusses for conventional stage setups.
Special Shapes: Circular, curved, Background Truss for Exhibitions and star-shaped trusses for creative stage designs. For example, Beijing Daxing International Airport’s skylight features specially shaped aluminum trusses that balance aesthetics and functionality. 2. Classification by Installation Method

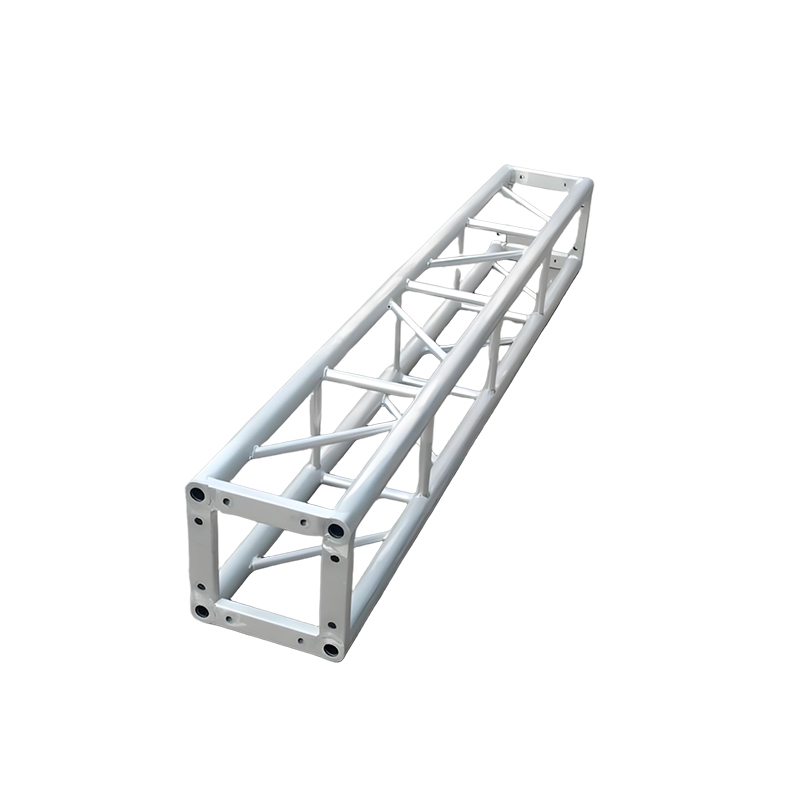

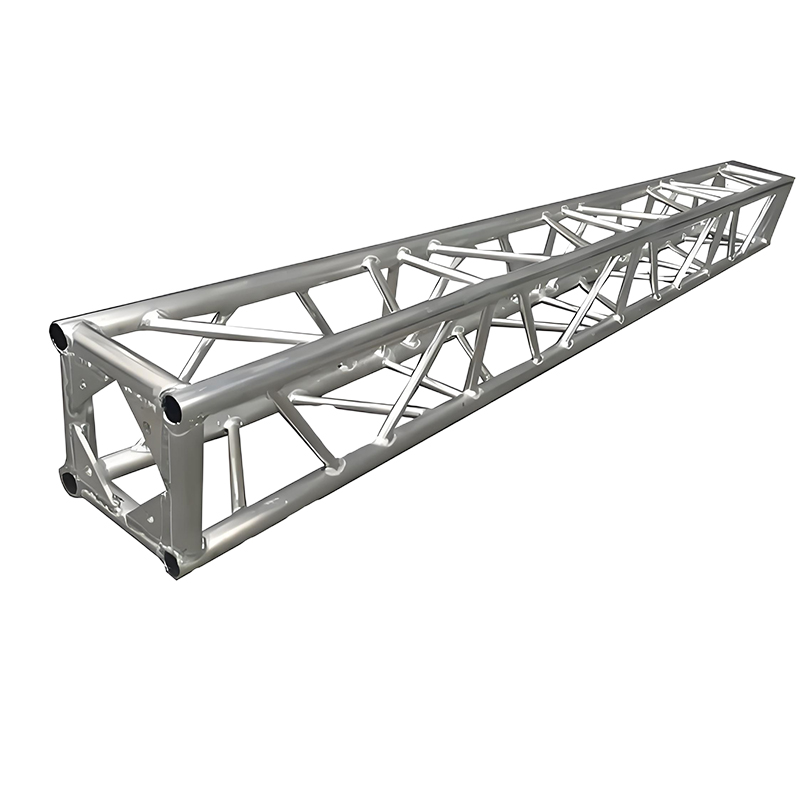

Screw-Type Trusses:Premium Aluminum Stage Truss Connected via screws, these are cost-effective but time-consuming to install, suitable for budget-constrained projects.
Pin-Type Trusses: Utilize bullet-shaped and maple-leaf pins for quick assembly and high stability. They cost 20%-30% more than screw-type trusses but improve efficiency by 50%.
3. Classification by Specifications
Common Sizes:
300×300mm (load capacity: 300 kg, span: 12 m)
400×400mm (load capacity: 400 kg, span: 16 m)
400×600mm (load capacity: 450-500 kg, span: 20 m)
Custom Sizes: Larger spans or specialized cross-sections (e.g., 600×800mm) Durable Aluminum Alloy Truss can be produced for oversized stages.
4. Classification by Function
Lighting Trusses: Optimized for hanging lighting equipment with enhanced load-bearing and wind resistance.
Background Trusses: Lightweight designs for installing printed backdrops or LED screens.
Integrated Truss Systems: Combine bases, counter-heads, and diagonal supports to enable complex stage structures.
III. Customized Solutions: From design to implementation, High-Quality Stage Truss System we offer a full-process one-stop service. 1. Requirement Analysis
Provide critical details such as site dimensions, load requirements, and usage scenarios (e.g., indoor/outdoor, permanent/temporary).
Example: An outdoor music festival requires a 30-meter-span stage with wind resistance rated for Level 8 and a load capacity of 1.5 tons.
2. Structural Design
Material Selection: Choose 6061-T6 or 6082-T6 aluminum alloys based on load and span demands to balance strength and toughness.
Node Optimization: Use triangular aluminum plates or hollow box structures to enhance overall stability.Versatile Aluminum Truss Design For instance, the Shanghai Tower’s mega-truss system combines high-performance steel and aluminum for rigidity and lightweight efficiency.
Simulation Analysis: Utilize finite element software to model stress distribution under load, optimizing member cross-sections and connections.
3. Manufacturing and Processing
Cutting and Welding: High-precision CNC cutting machines ensure dimensional accuracy within ±0.5 mm. Welding processes comply with ISO 9001 standards, achieving weld strength exceeding 80% of the base material.
Surface Treatment: Anodizing or powder coating enhances corrosion resistance and aesthetics. For instance, powder-sprayed aluminum trusses are capable of achieving matte or glossy finishes.
4. Installation and Testing
On-Site Assembly: Professional teams guide installation, ensuring verticality errors ≤3 mm and horizontality errors ≤5 mm.
Load Testing: Conduct static load tests at 1.2 times the design load for 24 hours; no deformation confirms compliance.
5. After-Sales Support
Warranty Period: Typically 1-3 years, covering material defects and workmanship issues.
Maintenance Advice: Regularly inspect connector tightness and avoid overloading to extend truss lifespan.
IV. Case Studies: Validation from Theory to Practice
1. National Centre for the Performing Arts Mobile Stage
Employing aluminum trusses with a maximum single-piece span of 25 meters and weighing less than 60% of steel equivalents, this system supports rapid stage reconfigurations.
2. Beijing Daxing International Airport Skylight
Specially shaped aluminum trusses eliminate condensation issues associated with steel while meeting architectural aesthetic requirements.
3. Outdoor Music Festival
Custom 400×600mm aluminum trusses with a 30-meter span and 1.5-ton load capacity withstood Level 8 winds, ensuring (show safety).
