Introduction to Hot-Dip Galvanized Disk-Lock Scaffolding Hot-dip galvanized disk-lock scaffolding (we just call it "galvanized disk scaffolding" in the industry) is the tough, weather-resistant pick for jobs that demand durability—think outdoor construction, bridge repairs, or long-term industrial use. Cuplock Scaffolding It’s basically the heavy-duty disk-lock scaffolding you might see on building sites, but with a key upgrade: every part (posts, crossbars, disks) gets a hot-dip galvanizing treatment. This indicates that it is coated with a thick layer of zinc, Cuplock Scaffolding System which can completely prevent rusting, even in rainy, snowy or dusty industrial settings.It’s not the lightest option, Quick Assembly Scaffolding but if you need scaffolding that’ll hold up to the elements and heavy loads, this is it. I. Why It’s a Workhorse: Weatherproof + Strong
1. Rust-Proof for Years—No More Maintenance Headaches
The hot-dip galvanizing is the star here. Unlike regular paint or spray-on coatings that chip off, hot-dip galvanizing dips the steel parts in molten zinc (around 450°C). The zinc bonds to the steel, forming a layer 85-120μm thick—thick enough to resist rain, salt spray (like near oceans), or chemical dust from factories. You can leave it outside for months, and it won’t get rusty spots. For outdoor jobs like building a park pavilion or repairing a highway overpass, Galvanized Cuplock Scaffolding this saves so much time—no need to stop work to repaint or replace rusted parts. 2. Handles Heavy Loads—Just Like Standard Heavy-Duty Scaffolding
Don’t let the "weatherproof" part make you think it’s weak. It’s built with the same tough Q235/Q345 steel as regular heavy-duty disk scaffolding. A single vertical post can support 1-1.5 tons, and the whole structure holds 300-400kg per square meter—enough for concrete bags, welding gear, or 3-4 workers at once. The disk-lock system still works like a charm: crossbars clip onto the welded disks, lock tight with a pin, and spread weight evenly so there are no weak spots. Even with heavy gear bouncing a little (like when moving tools), it won’t wobble.
3. Stays Stable in Rough Conditions
Outdoor jobs mean dealing with uneven ground, wind, or even light snow—and this scaffolding handles it. Hot-Dip Galvanized Cuplock Scaffolding Heavy Duty Cuplock Scaffolding The adjustable steel bases (twist to raise/lower 10-20cm) fix sloped or bumpy ground, and the wide base plates (15-20cm diameter) keep posts from sinking into soft dirt or mud. Add diagonal braces (which are also galvanized) to form triangles, and it resists wind gusts up to 5-6 levels—no shifting, no leaning. II. Key Parts & the Galvanizing Difference
1. The Main Pieces—All Galvanized, All Tough

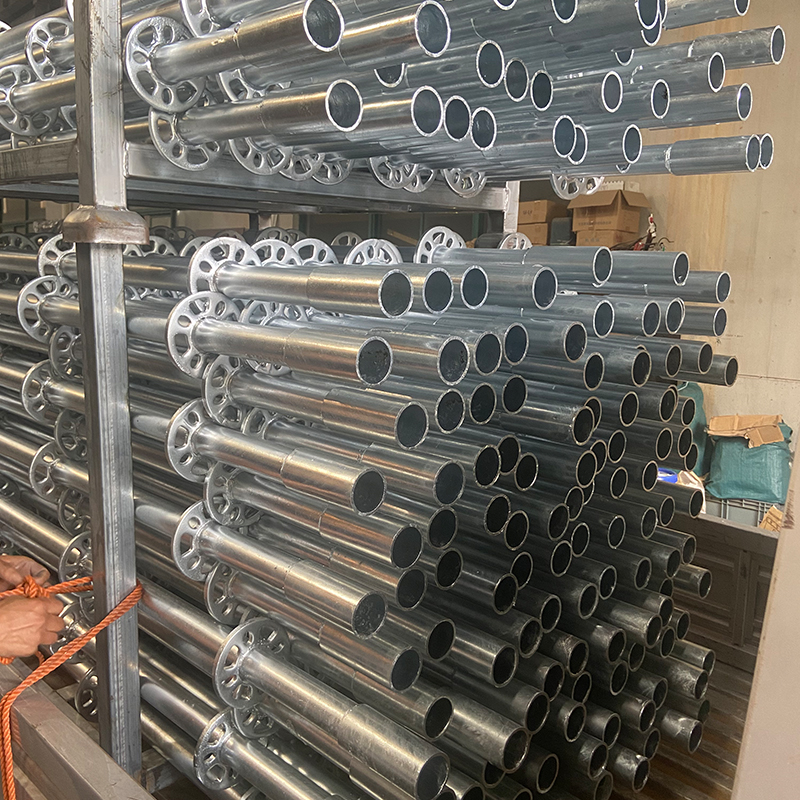

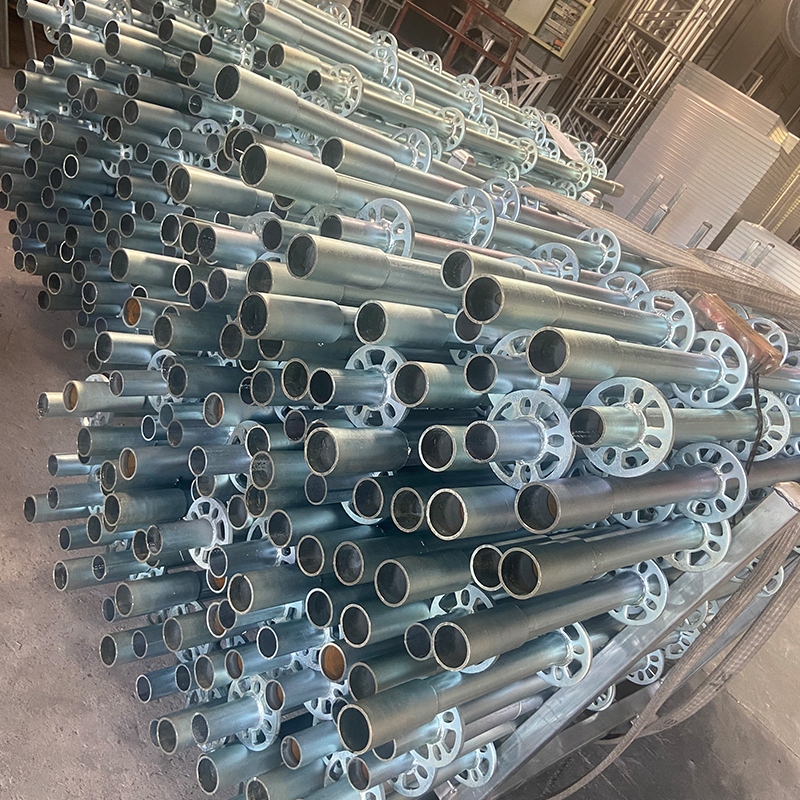

Vertical Posts: Thick steel "legs" (3-4m long, 3-5mm wall thickness) with circular disks (6-8cm diameter) welded every 50cm. The disks are where crossbars connect, and every inch of the post—including the disks and threaded bottom—is galvanized. Hot Dip Galvanized Cuplock Scaffolding System No bare steel spots to rust.

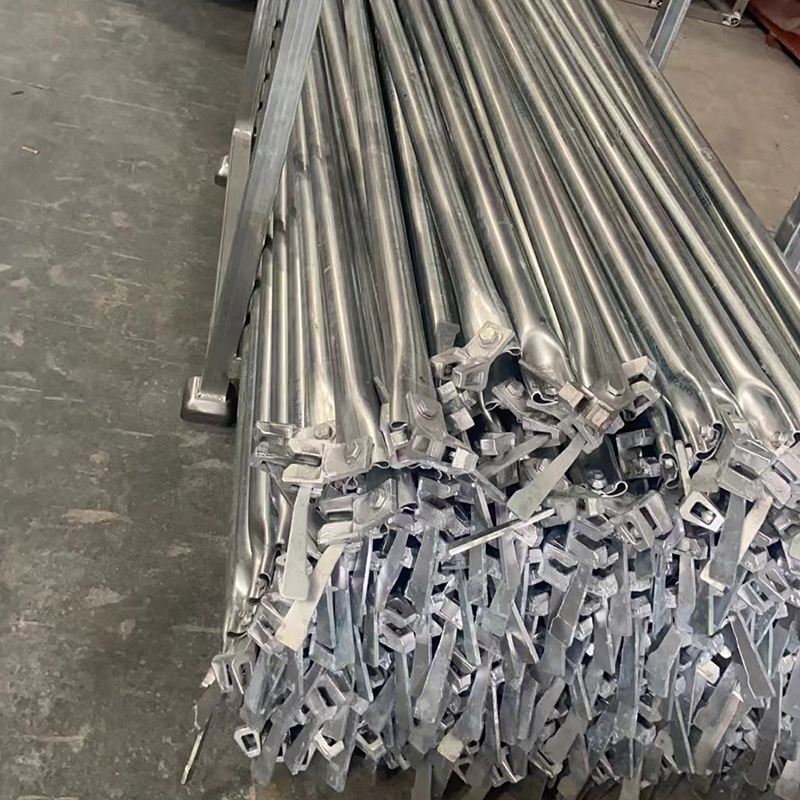

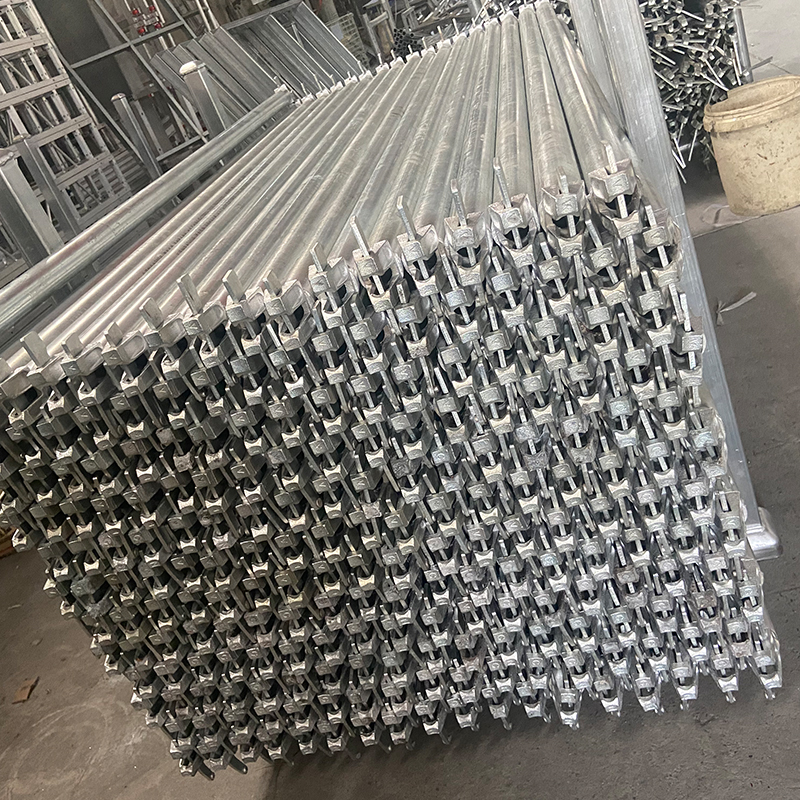

Crossbars: Horizontal steel bars (1-3m long) with C-shaped clips and spring-loaded locking pins. The clips, pins, even the tiny springs get galvanized—so nothing seizes up from rain or dust. You slide the clip onto a disk, lock the pin, Hot Dip Galvanized Scaffolding and it stays smooth to use for years.
Diagonal Braces: Steel bars cut to 45° angles, with the same C-clips as crossbars. They’re fully galvanized too, so they won’t rust where they touch the posts—critical for outdoor stability.
Adjustable Bases: Heavy steel bases that screw onto post bottoms. Corrosion Resistant Cuplock Scaffolding The threads and base plates are galvanized, so twisting them to level the scaffolding never gets stuck (even if they sit in rain).
2. What Makes Hot-Dip Galvanizing Better?
Regular scaffolding might use "electro-galvanizing" (a thin zinc coat) or paint, but hot-dip is way more durable. The molten zinc seeps into small gaps (like around disk welds) that paint misses, so there’s no hidden rust. It also lasts 2-3 times longer—electro-galvanized parts might rust in 2-3 years outdoors, but hot-dip ones stay rust-free for 10+ years with basic care (just wipe off dirt now and then).
III. How to Pick & Set It Up (Practical Tips)
1. Picking the Right Set
Focus on Load & Environment: If you’re working outdoors with heavy gear (like bridge repair tools), go for posts with 4-5mm wall thickness. If it’s a mild outdoor job (like building a backyard deck), 3mm posts work. Always check the rated load—make sure it’s 1.2 times the total weight you’ll put on it (workers + tools + materials).
Check the Galvanizing Quality: Good galvanizing looks smooth, with no bare steel or thick zinc blobs. If you see spots where the zinc is missing, pass—those will rust first.
Match Size to the Job: For tall setups (over 15m), get posts with closer disk spacing (40cm instead of 50cm) and extra diagonal braces. For wide areas, use longer crossbars but add more posts to keep weight even.
2. Setting It Up—3 Key Steps
Step 1: Prep the Site & Lay Bases: Clear rocks, mud, or debris—outdoor ground is messy, so a flat base helps. Mark post positions (1.5-2m apart), screw the adjustable bases onto posts, and set them down. Twist the bases to level the posts (use a long level—this is non-negotiable for stability).
Step 2: Build the Frame: Start with the bottom layer—clip crossbars to the lowest disks, lock the pins. Add diagonal braces to the first layer (one every 2 posts). Move up to the next disk, add another layer of crossbars and braces, and keep going until you reach height. For outdoor jobs over 10m, add wind ropes (tied to trees or buildings) for extra hold.
Step 3: Secure & Inspect: Lay galvanized steel platform planks on top (they won’t rust either) and clip them down. Give the frame a shake—if it moves, add more braces. Check all locking pins (vibration from wind can loosen them) and make sure bases are still level.
3. Things to Watch For
Don’t scratch the galvanizing—if you chip the zinc layer, paint over the spot with zinc-rich paint to stop rust.
Never overload the platform—even tough scaffolding bends if you pile too much weight in one place.
For winter use, clear snow off the platform first—wet snow adds extra weight you might not account for.
IV. Where You’ll See It Most
Outdoor Construction: Building highways, bridges, or outdoor stadiums—where it’s exposed to rain, wind, and dirt for months.
Industrial Maintenance: Fixing factory exteriors, power plant towers, or oil refineries—places where chemical dust or salt spray would ruin regular scaffolding.
Long-Term Temporary Structures: Scaffolding for year-long renovations (like old building restorations) or seasonal events (outdoor concert stages that stay up for weeks).
It’s heavier than aluminum scaffolding, and you’ll need a truck to haul it—but for outdoor, heavy-duty jobs where rust and stability are make-or-break? Hot-dip galvanized disk-lock scaffolding is the reliable choice. Construction crews swear by it because it works hard, lasts long, and doesn’t let weather slow down the job.
