Heavy-duty disk-lock scaffolding (we call it "heavy-duty disk scaffolding" for short in the industry) is the tough guy for big, high-load jobs—think industrial construction, large-scale stage rigging, or bridge maintenance. Cuplock Scaffolding Unlike the lightweight scaffolding used for small stages, this one’s built to handle serious weight: tons of building materials, heavy equipment, or even multiple workers at once. The "disk-lock" part is key here—it uses circular disks on the posts to lock crossbars in place, which makes the whole structure way sturdier than regular bolted scaffolding. It’s not the easiest to carry, but when you need something that won’t budge under pressure,Cuplock Scaffolding System this is the go-to. I. Why It’s Used for Heavy Jobs: Strength & Stability
1. Handles Tons of Weight (Literally)
This scaffolding means business when it comes to load-bearing. A single vertical post can support 1-2 tons, and the whole structure can hold up 300-500kg per square meter—enough for concrete buckets, welding machines, or stacks of steel bars. The disk-lock connections are the secret: each crossbar clips onto the disks (which are welded to the posts) and locks tight, so weight gets spread evenly across the entire frame, no weak spots.
2. Super Stable—Even for Tall Setups

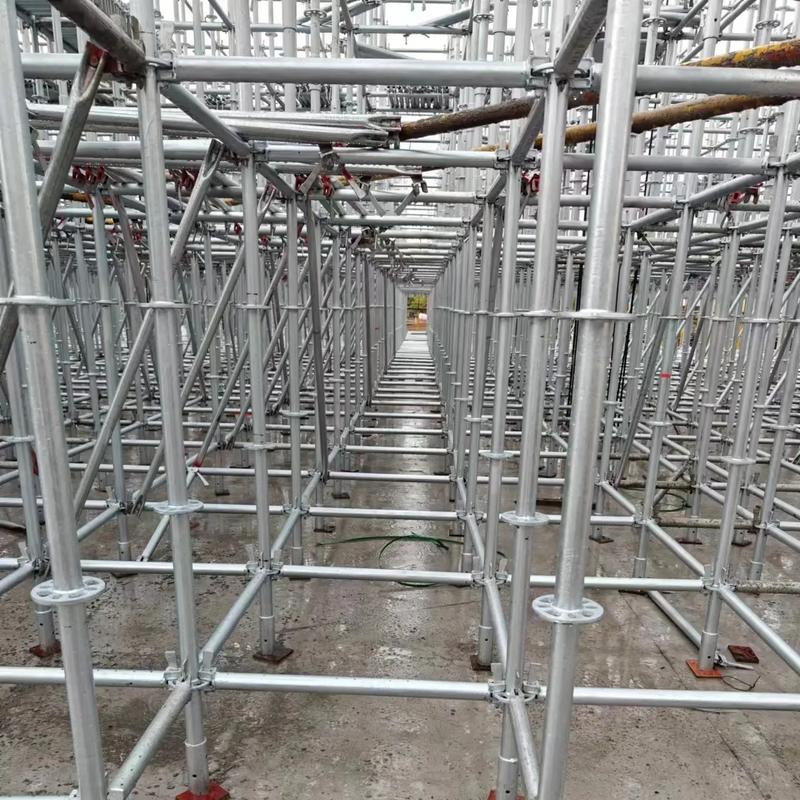

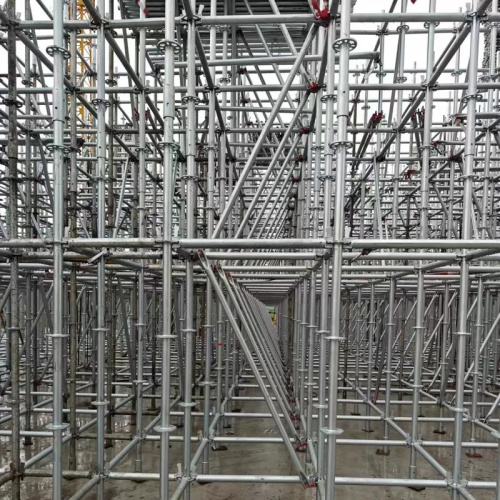

It’s great for high scaffolding (up to 30m tall, in some cases) because of how rigid it is. Quick Assembly Scaffolding The disks are spaced every 50-60cm on the posts, and you can add diagonal braces between them to form triangles—one of the strongest shapes for resisting sway or leaning. Even in windy industrial sites or on uneven construction ground, it stays solid. No more worrying about the scaffolding shifting when workers move around. 3. Quick to Assemble (For How Heavy It Is)
You might think heavy-duty means slow to put together, but the disk-lock system speeds things up. No bolts to tighten with wrenches—just slide the crossbar’s end onto the disk, twist a locking pin until it clicks, and you’re done. Galvanized Cuplock Scaffolding A 3-person crew can build a 10m×5m scaffolding frame in 2-3 hours, which is way faster than traditional bolted scaffolding (which could take twice as long). II. Key Parts & How They Work
1. The Core Pieces—Built for Toughness

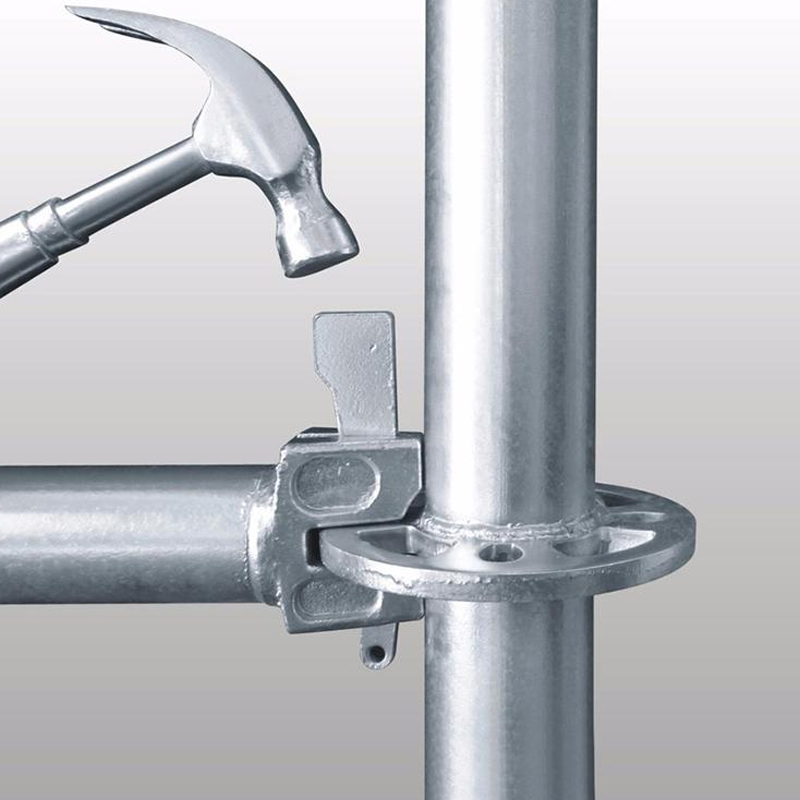

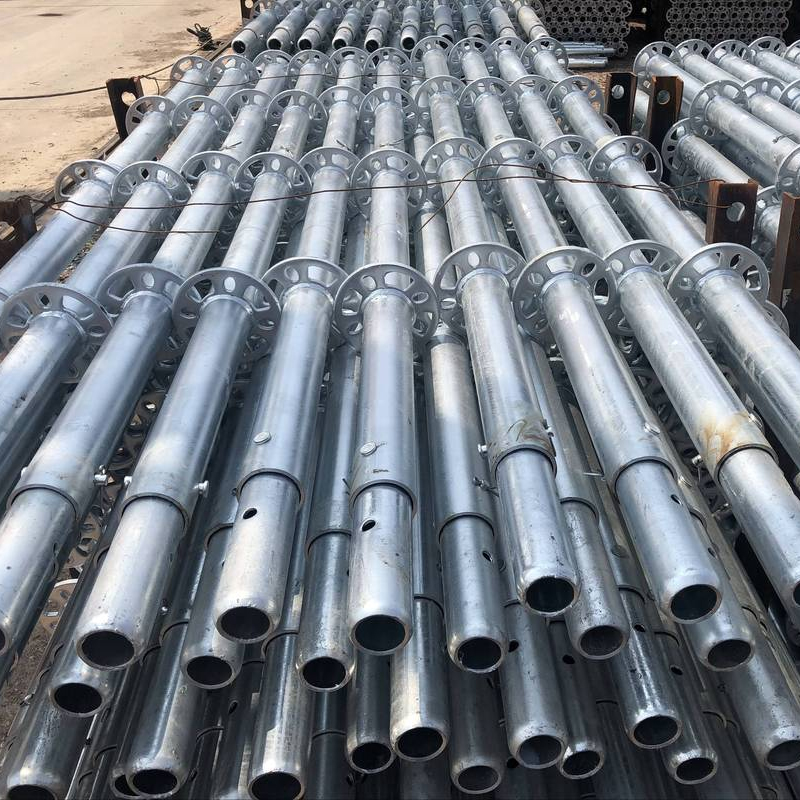

Vertical Posts (Standards): These are the thick steel "legs"—usually 3-4m long, with a wall thickness of 3-5mm (way thicker than light scaffolding). Heavy Duty Cuplock Scaffolding Disks (6-8cm in diameter) are welded to the posts every 50cm—these are the connection points for crossbars. The bottom has a threaded base for adjusting height. Crossbars (Ledgers): The horizontal bars that link the posts. Each end has a "C-shaped" clip that fits over the disks, plus a spring-loaded locking pin. You slip the clip onto the disk, push the pin down, and twist—it locks so tight you can’t pull it off without releasing the pin. They come in lengths from 1m to 3m, depending on how wide you need the scaffolding.
Diagonal Braces: These are the "supports" that keep the frame from leaning. They’re also steel, with the same C-shaped clips as crossbars. Heavy-Duty Cuplock Scaffolding You attach them diagonally between posts (from one disk to another) to form triangles—this stops the scaffolding from swaying, even in strong winds.
Adjustable Bases: Heavy-duty steel bases that screw onto the bottom of posts. You twist them to raise or lower the post by 10-20cm—perfect for fixing uneven construction ground. They have a wide, flat plate (15-20cm in diameter) so the post doesn’t sink into soft dirt or concrete.
2. Materials—Tough and Rust-Resistant
Nearly all heavy-duty disk-lock scaffolding is made of Q235 or Q345 galvanized steel. Heavy-Duty Cuplock Scaffolding design Galvanizing is a must here—it’s a process that coats the steel with zinc, so it doesn’t rust even in wet or dusty industrial sites. The disks are welded to the posts with strong, full welds (no weak spots), and the locking pins are made of high-strength steel that won’t bend under pressure. This stuff is built to last—with regular maintenance, it can be used for 10+ years.
III. How to Pick One & Set It Up (Practical Tips)
1. Picking the Right Scaffolding
Calculate the Load First: Figure out how much weight the scaffolding needs to hold—workers, equipment, materials, all combined. Make sure the scaffolding’s rated load is at least 1.2 times that total (safety first—never cut corners here).
Match the Height & Width: For tall setups (over 15m), pick posts with more disks (closer spacing) and thicker crossbars.Durable Cuplock Scaffolding Frame For wide scaffolding (over 2m), use longer crossbars but add extra diagonal braces to keep it stable.
Check for Quality: Look for scaffolding with thick steel (posts at least 3mm thick), smooth disk welds (no gaps), and locking pins that click firmly. Avoid cheap, thin steel—It’ll bend or break under heavy load.
2. Setting It Up—3 Key Steps
Step 1: Prep the Ground & Lay Bases: Clear the area of debris, then mark where each post will go (space them 1.5-2m apart, both horizontally and vertically). Reinforced Cuplock Scaffolding Design Screw the adjustable bases onto the posts, set them on the marks, and twist the bases to get them roughly level (use a long level to check—this is crucial for stability).
Step 2: Build the Frame: Start with the first layer—attach crossbars to the bottom disks of the posts (slide the C-clip on, lock the pin). Then add diagonal braces to the first layer (one every 2 posts). Move up to the next disk, add another layer of crossbars and braces, and keep going until you reach the desired height.
Step 3: Secure & Inspect: Once the frame is built, add platform planks (thick steel or wood) on top of the crossbars—secure them with clips so they don’t slide. Then do a final check: shake the frame gently (it shouldn’t move), make sure all locking pins are clicked in, and confirm the bases are still level. For tall scaffolding, add wind ropes (tied to nearby structures) for extra stability.
3. Things to Watch For
Never skip diagonal braces—even one missing brace can make the whole frame unstable.
Don’t overload the top platform—stick to the rated load, and spread heavy gear out (don’t pile everything in one spot).
Check the locking pins daily—vibration from equipment can sometimes loosen them, so give each pin a quick twist to make sure it’s tight.
IV. Where You’ll See It Most
Industrial Construction: Building factories, power plants, or high-rises—where workers need to access tall areas with heavy tools.
Bridge Maintenance: Fixing or painting bridges—where the scaffolding needs to hold heavy equipment and resist wind off rivers or roads.
Large-Scale Events: Heavy-duty stage rigging for big concerts or festivals—where it’s used to hang massive LED screens or speakers (though it’s heavier than aluminum trussing, it’s more stable for ultra-heavy gear).
It’s not the most portable option—you’ll need a forklift or truck to move the posts and crossbars—but when strength and stability are non-negotiable, heavy-duty disk-lock scaffolding is the reliable choice. Construction and event crews trust it because it does exactly what it’s supposed to: hold heavy loads safely, no matter the job.
