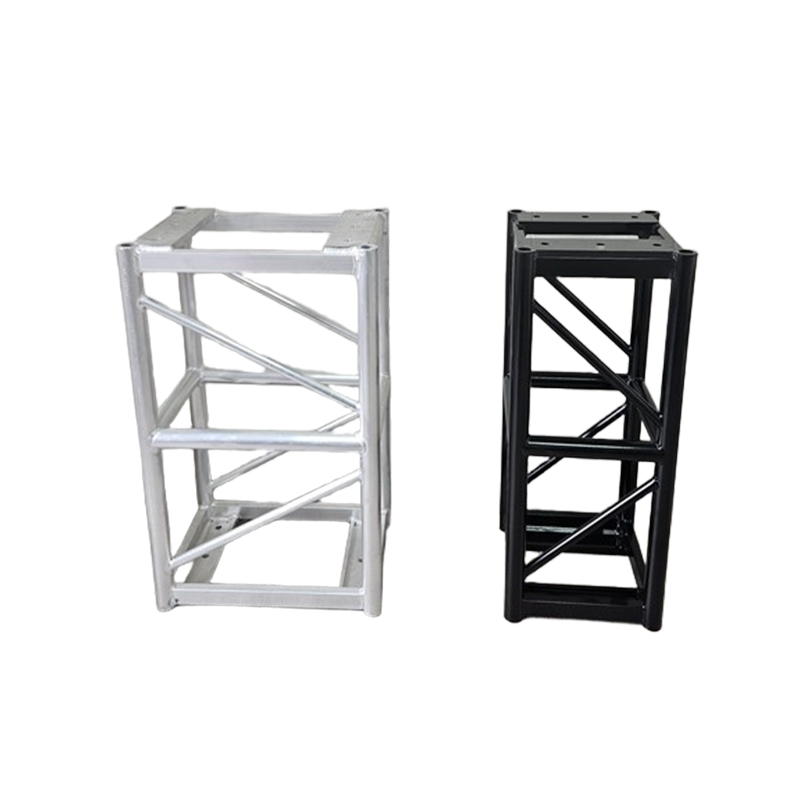

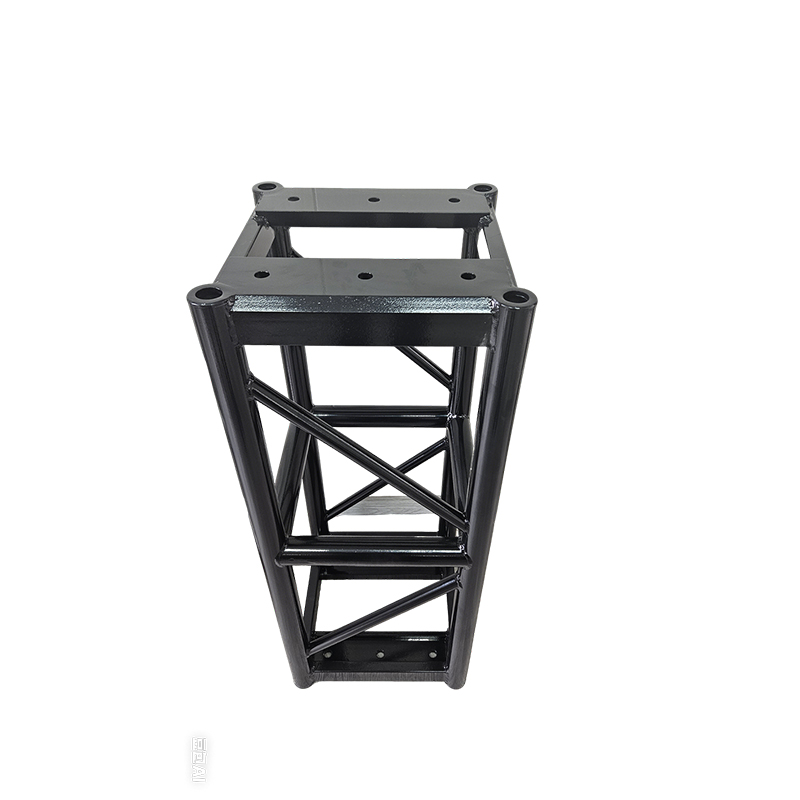

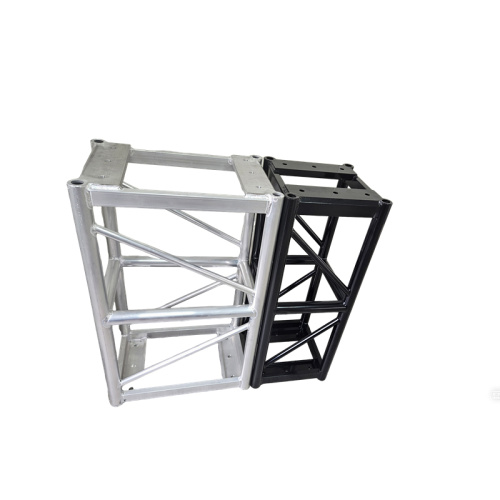

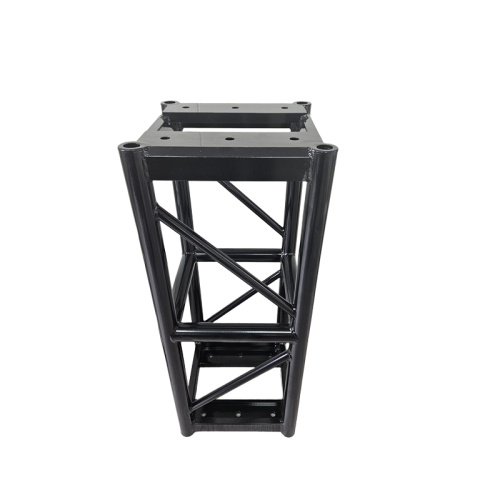

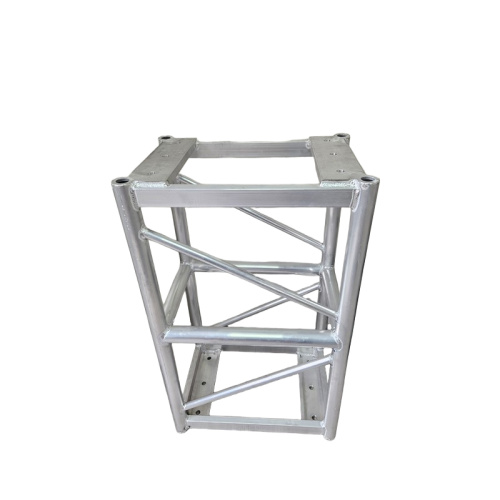

Aluminum Round Tube Stage Truss

Get Latest Price

Contact Now

Description

Round Tube Truss

00:11

Product Description

Aluminum round-tube stage trusses are built for crews who need to set up fast, tear down faster, and still trust the rig with lights, speakers, or even small cars. Below is a straight-talk guide to how they go up, Modular Truss what they’re made of, and where they shine.

Putting it up – no cranes, no welders

Time and muscle: two to four people, one to three hours up, one hour down.

Step 1 – mark the floor

• Sweep the area; slope must be under 3°.

• Tape out the footprint (e.g., 10 m × 6 m needs four main trusses and six cross-beams).

• Count parts: main tubes (4 m / 6 m / 8 m), modular truss system spigots, pins, flanges, base plates, and hand tools.

Step 2 – feet first

• Drop adjustable base plates every 1.5–2 m.

• lightweight modular truss Wind the screws until the bubble is level – tolerance 2 mm across the line.

Step 3 – frame it

• Each 6 m bay weighs about 35 kg – two people can carry it.

• Bolt the feet to the flanges (M10 bolts, 30–40 N·m)adjustable modular truss frame.

• modular truss for stage Click in cross-beams every 2–3 m, then add diagonal braces at 45° to stop side sway.

Step 4 – hang the kit

• Rig points are pre-drilled every 1.5 m; spread the load so no single point takes more than 50 kg.

• Shake the frame, check bolts, plug in power – done.

Step 5 – strike

Reverse the order;modular truss with brackets stack the tubes like firewood in the van.

What it’s made of – light but tough

Main tubes

• 6061-T6 or 6063-T5 aluminum (260 MPa tensile) – half the weight of steel.

• 6 m span weighs ~32 kg; one adult can shoulder it.

• Hard-anodised 10 µm coat shrugs off rain and indoor condensation – 5-8 year life.

Fittings

• Flanges: cast ADC12 aluminum, won’t bend after repeated use.

• Pins: zinc-plated 45# steel (600 MPa).

• Bolts: grade 8.8 carbon steel, hot-dip galvanised – they stay tight.

Where it fits – small to mid-size gigs

Indoor

• Bar residencies, corporate events, school Modular Aluminum Round Truss System talent nights – lights, LED walls, or backdrop frames.

Outdoor

• Campus festivals, Lightweight Aluminum Round Truss open-air weddings, market-day stages – fine in wind up to level 5 and short showers.

Pop-up

• Trade-show booths, car launches, photo-call backdrops – build to any 3 m, 6 m, or 10 m bay you need.

Bottom line: aluminum round frame Stage Truss carry it in one van, set it up before the kettle boils, and trust it to hold whatever the show throws at it.
