Description

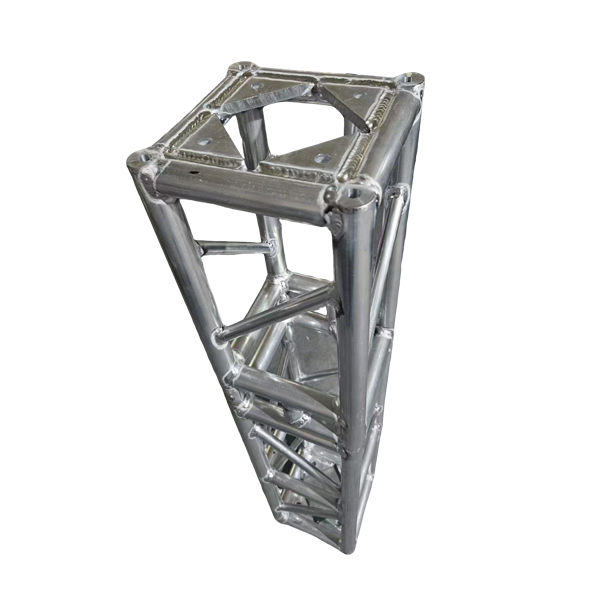

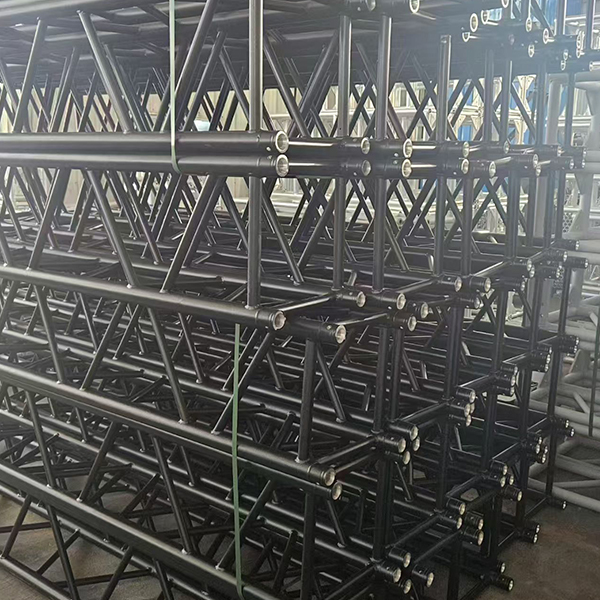

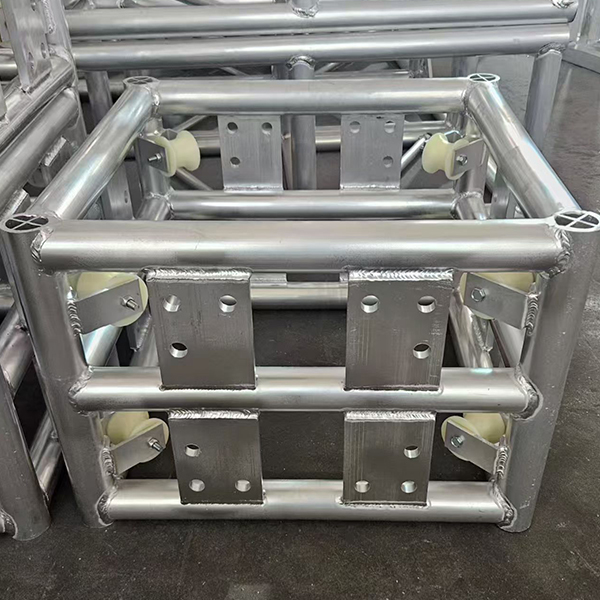

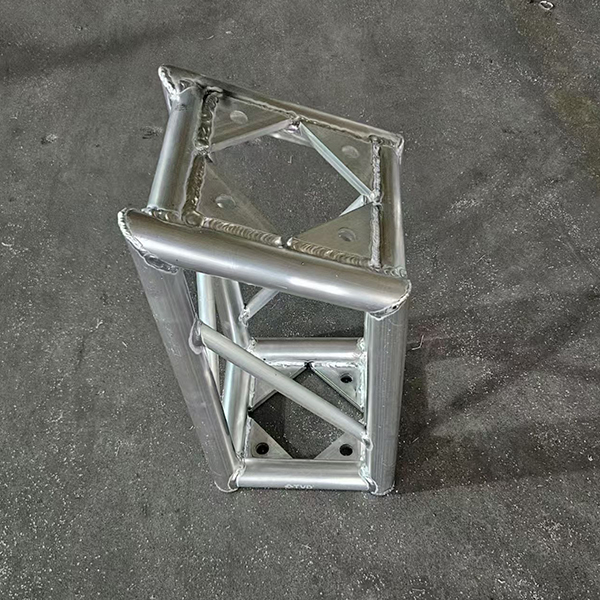

Round Tube Truss

00:11

Product Description

The Aluminum Stage Truss distributes loads uniformly across its members, allowing the members to mainly bear axial tension or compression. By doing so, it makes the most of the material's strength. In contrast to solid web beams, it is more economical in terms of material usage and offers superior stiffness, effectively resisting external forces such as wind and vibrations and avoiding the potential for stress concentration. It can stably hold different types of heavy-duty performance equipment, with average load capacities spanning from 120 kg to 1,000 kg for various specifications. Its safe span extends from 6 meters to 24 meters, ensuring complete safety throughout the event.

Specifications are primarily distinguished by the cross-sectional dimensions of the Truss.

Exhibition Stand Truss supports customization as needed. For steel trusses, the dimensions are 200*200mm and 250*250mm:

200*200mm: Main tube 25*2mm, secondary tube 15*1.5mm, safe span around 6 meters, average load capacity 120kg. Suitable for small weddings and indoor events. Finished lengths range from 20cm to 300cm, ideal for supporting small lighting and curtains.

300*300mm: Standard main tube 30*2mm or 50*3mm, safe span 8–12 meters, average load capacity 150–300kg. Suitable for small to medium concerts and exhibitions. Can be paired with triangular aluminum plate frames to enhance load capacity. Finished lengths available from 100cm to 400cm.

400*400mm/400*600mm: Standard main tube 50*3mm, safe span 15–20 meters, average load capacity 500–800kg. Stability can be enhanced with "eight-shaped" supports at the joints. Suitable for large outdoor performances and large LED screen hoisting. Compatible with accessories such as square sleeves, heads, and chain hoists.

500*600mm/520*760mm: Main tube 50*3mm, safe span 22–24 meters, average load capacity 800–1000kg. The 520*760mm specification uses double-square tubing, with diagonal tubes upgraded to 30*2mm. Suitable for large-scale sports events and super-large concerts requiring ultra-high load capacity and ultra-large spans.

Easy Assembly and Disassembly, Efficient and Convenient

Triangular stage truss uses screw connections or pin-type connections, eliminating the need for complex construction tools. A team of 4 can complete the setup of small to medium stages in 3 hours. The disassembly process is equally efficient, with lightweight components that are easy to store and transport, effectively saving labor, logistics, and time costs. Suitable for outdoor temporary events and short-term exhibitions where setup speed is critical.

Durable and Corrosion-Resistant, High Cost-Effectiveness

It offers strong corrosion and aging resistance. Tube Truss has a service life of 6–10 years, while steel trusses, after hot-dip galvanizing, also effectively resist rust. They can be reused repeatedly, significantly reducing long-term costs.
