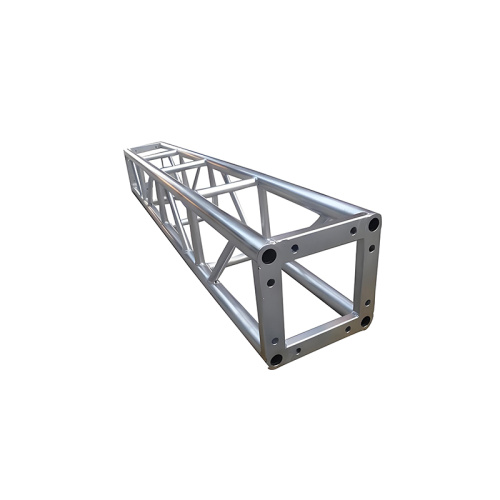

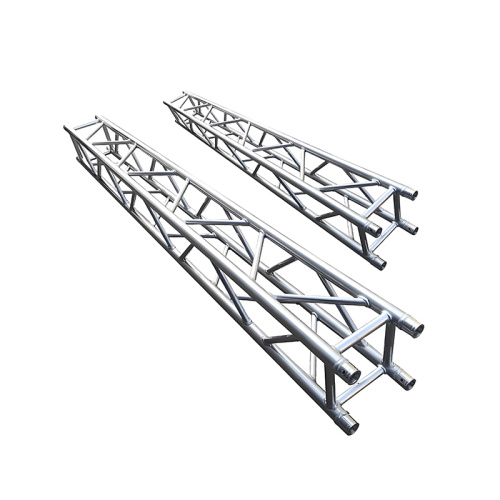

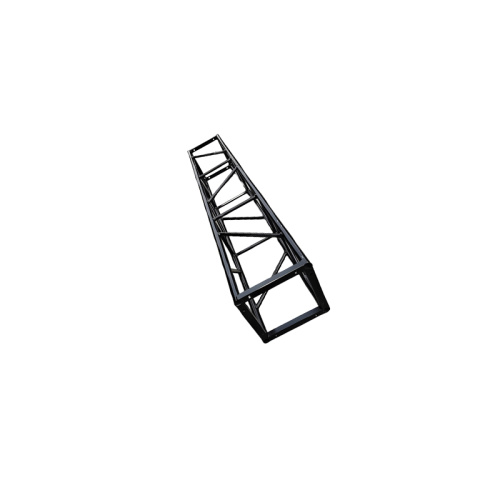

Pin Lock Truss Components

Get Latest Price

Contact Now

Description

Product Description

Pin Lock Truss System: An Efficient Support Solution for Event Setup

In the preparation process of various events, Pin Lock Truss System a stable and easy-to-assemble support structure is crucial for stage arrangement, lighting and audio installation, and overall visual presentation. Square Truss Rigging Hardware When it comes to setting up stuff for exhibitions, performances, and celebrations, there's this super awesome thing Pin Lock Truss Structure called the pin lock truss system! It's totally different from the usual ways of putting things together. The way it connects all the parts is really unique, and the whole frame is designed in a super clever way.

System Composition and Connection Principle Pin Lock Truss Design

The pin lock truss system mainly consists of truss units, pins, and related auxiliary accessories. Pin Lock Truss Components Among them, the truss units are usually made of aluminum alloy (such as 6061-T6 aluminum alloy). On one hand, it makes the structures solid and steady. On the other hand, it keeps the overall weight low, Heavy-Duty Square Truss so it's a piece of cake to transport and handle. And get this, it's also good at resisting corrosion. You can use it anywhere, no problem at all.

Truss units are connected via specially designed pins. Aluminum Square Truss System The connection principle involves arranging corresponding pin holes at the ends of the truss units; when splicing is required, Square Truss for Stage Lighting pins are inserted into the holes of two truss units to join them tightly. Some high-end pin lock truss systems are also equipped with anti-loosening devices—for example, anti-loosening holes are drilled on the pins, and R-clips are inserted—to further ensure connection stability and prevent accidental pin detachment during use Square Truss.

Core Advantages

Rapid Assembly and Disassembly

Compared with traditional welded or bolt-connected trusses, the pin lock connection significantly improves assembly efficiency. Taking the setup of a medium-sized stage lighting truss as an example: traditional bolt connection might take several hours or even longer to complete, while a skilled team can finish setting up the same-scale structure in just 1–2 hours using the pin lock truss system. This advantage holds particularly

significant value for time - sensitive event preparations, such as the temporary addition of event sessions or urgent re - installation triggered by venue changes.The disassembly process is equally convenient—simply pull out the pins to quickly separate the truss units, facilitating subsequent transportation and storage.
