Modular Layher scaffolding (we often just call it "modular Layher" in the industry) is a game-changer for temporary stage setups. Unlike traditional Layher frames that come in fixed sections, this one’s built around "modules"—pre-designed parts that snap together in tons of ways. Whether you need a small 3m×2m school stage, a medium 8m×4m outdoor concert platform, or even a multi-level backstage area, you just mix and match the modules instead of building from scratch. It’s flexible, saves time, and is super easy for small crews to handle.
I. Why It’s a Go-To: Flexibility & Speed
1. Mix-and-Match for Any Stage Size
The best part is how customizable it is. All modules are standard—you’ve got basic "frame modules" (the main grid parts), "height-extender modules" (to make the stage taller), and "accessory modules" (like railings or gear hangers). For example, if you need a 6m long stage, just link three 2m frame modules together. If you want it 1.5m tall instead of 1m, swap out the short vertical posts for extender modules. No cutting or custom parts—just pick what you need.
2. Faster Setup Than Regular Layher
Since the modules are pre-built, you don’t have to piece together every crossbar and post one by one. A 2-person team can put up a 5m×3m stage in 45 minutes—way quicker than traditional Layher, which usually takes an hour and a half. Most modules connect with simple latches or quick bolts (no fancy tools needed) — line ’em up, lock ’em in, and move on.
3. Sturdy Enough for Daily Use
Don’t let the "modular" part make you think it’s flimsy. Each module is made of thick galvanized steel (or lightweight aluminum for small setups) that can handle regular stage wear—dancers jumping, crew walking on it, even light gear like par cans or backdrops. The grid structure spreads weight evenly, so you won’t get wobbly spots, and the connections are tight enough that wind (for outdoor stages) won’t rattle it.
II. Key Modules & What They Do
1. The Core Modules You’ll Use Every Time
Base Frame Modules: These are the "foundation"—they’re pre-assembled grids (usually 1m×2m or 2m×2m) with vertical posts and horizontal crossbars already attached. You just set them on the ground and link them together to make the stage’s base size.
Height Extenders: Short vertical modules (usually 0.5m or 1m tall) that stack on top of the base frame’s posts. If you need the stage higher (say, 1.5m instead of 1m), just add one 0.5m extender per post—no need to buy all-new tall posts.
Diagonal Brace Modules: Pre-made diagonal bars that clip onto the frame modules. They’re already cut to the right angle (45°), so you don’t have to measure—just hook them on to stop the frame from leaning.
2. Extra Modules for Specific Needs
Railing Modules: Short, pre-built railings that attach to the frame’s edges—great for stages where performers might step off the side, or for backstage platforms.
Gear Hanger Modules: Horizontal bars with built-in hooks, designed to hang lights or small audio gear. They clip right onto the top of the frame modules—no drilling or extra hardware.
Adjustable Base Pads: Every base frame module has these—twistable pads that let you level the stage on uneven ground (grass, bumpy floors). You can tweak each pad by 5-15cm to keep everything flat.
III. How to Pick & Set It Up (No Nonsense Tips)
1. Picking the Right Modules
Start with Size: Figure out your stage’s length, width, and height first. For a 4m×3m stage that’s 1m tall, you’ll need 6x 2m×1m base frames (to make 4m×3m) and no extenders. If you want it 1.5m tall, add 12x 0.5m extenders (one per post).
Think About Load: If you’re just putting a floor down, aluminum modules work. If you’re hanging lights or having a lot of people on stage, Adjustable Raya Scaffolding go for galvanized steel—make sure the total rated load is at least 1.2 times what you’ll put on it (safety first). 2. Setting It Up—3 Simple Steps
Step 1: Lay the Base Frames: Modular Raya Scaffolding Unfold the base frames and line them up where you want the stage. Connect them using the built-in latches—High Load Cuplock Scaffolding just push the clips together until they click. se a tape measure for careful measurement to ensure that the edges are straight. Step 2: Add Height (If Needed): Stack the height extenders on top of the base frame posts—each extender locks into place with a small pin. Modular Raya Scaffolding Solution Then put the top frame modules Ringlock Scaffolding (if you’re making a multi-level stage) on the extenders. Step 3: Level & Secure: Twist the adjustable base pads to make the whole frame flat (use a level to check). Add diagonal brace modules to the sides—one every 2m. Then lay the stage floor panels on top and screw them down so they don’t slide.
3. Things to Watch For
Don’t skip the diagonal braces—Modular Raya Scaffolding Design even indoor stages need them to stay steady.
Make sure all latches/pins are locked—give each module a gentle tug to check.
If you’re adding gear hangers, put them on the top frame’s main posts (not the crossbars)—those posts can handle more weight.
IV. Where You’ll See It
Small Events: School plays, community concerts, or local fairs—places where you need a stage that’s easy to adjust and take down.
Touring Shows: Modular Raya Scaffold Bands or theater groups love it because the modules stack flat for transport—you can fit a whole stage’s worth of modules in a small van.

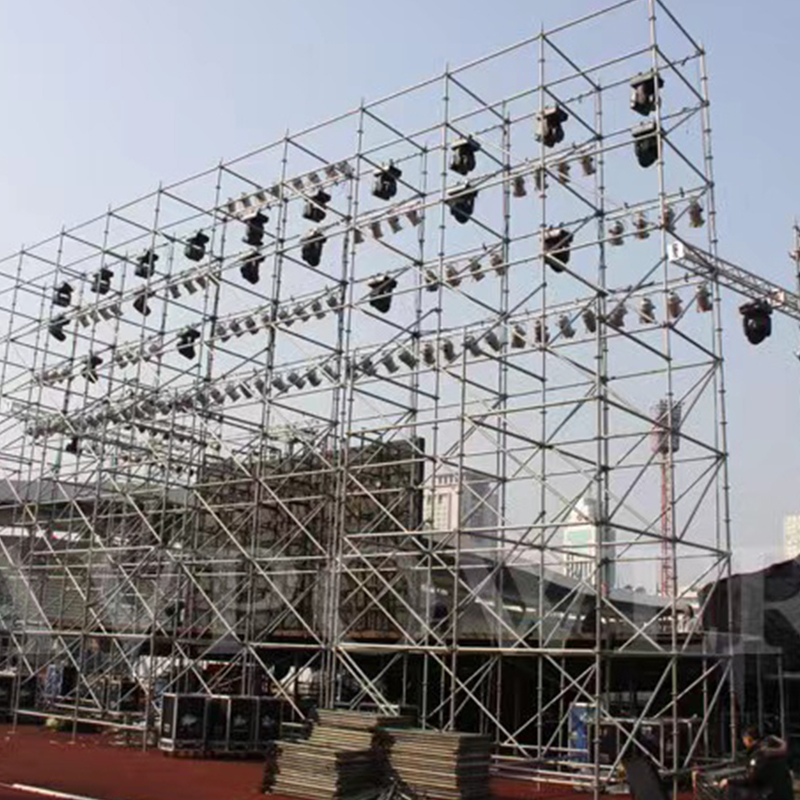

Temporary Backstages: Big concerts use Raya scaffolding it for backstage platforms—they can quickly add or remove modules if they need more space for crew.
It’s not rocket science—just smart, pre-built parts that let you make a stage that fits your needs, fast. That's the reason it's become a common item for anyone who sets up temporary stages on a regular basis.
