Quick-latch Layher scaffolding (we just call it "quick-lock Layher" for short in the industry) is a total upgrade from regular Layher frames—its biggest selling point is how fast you can put it together. No more messing with bolts or tools that take forever to tighten; you just line up the parts and snap Raya Scaffolding the latches shut. It’s perfect for stages that need to be set up in a hurry—like pop-up concerts, last-minute event platforms, or school assemblies where time is tight. It still keeps the sturdiness of regular Layher, but cuts assembly time by half, easy. I. Why It’s Useful: All About "Speed" and "No Fuss"
1. Assemble in a Flash—No Tools Needed
The main thing that makes it different is the "quick latches" on every crossbar. Each end of the crossbar has a metal latch that clicks right into the holes on the vertical posts. You don’t need a wrench, screwdriver, or anything—just push the crossbar into place, and the latch locks automatically. A 4-person team can put up a 6m×4m stage frame in under an hour—way faster than regular Layher, which usually takes 2+ hours.
2. Still Sturdy Enough for Stage Stuff
Don’t let the "quick" part fool you—it’s still tough. Ringlock Scaffolding The latches are made of thick steel (2-3mm) that won’t pop open on its own, even if you hang small lighting or backdrops. The frame’s grid structure (vertical posts + horizontal crossbars + diagonal braces) spreads weight out evenly, so dancers jumping or a few crew members standing on the stage won’t make it shake. Most models can hold up to 200kg per square meter—more than enough for basic stage gear.
3. Adjust On-the-Go—Great for Uneven Spots
Like regular Layher, it has adjustable bases on each vertical post. Adjustable Raya Scaffolding You twist the base to raise or lower the post (usually 5-15cm adjustment) to fix uneven ground—grass, bumpy hall floors, whatever. And since the latches are easy to undo, if you realize the frame’s off-level halfway through, you can just pop a crossbar loose, tweak the base, and re-lock it in 20 seconds. No starting over from scratch. II. What It’s Made Of & Key Parts
1. The Parts That Matter—Simple but Smart

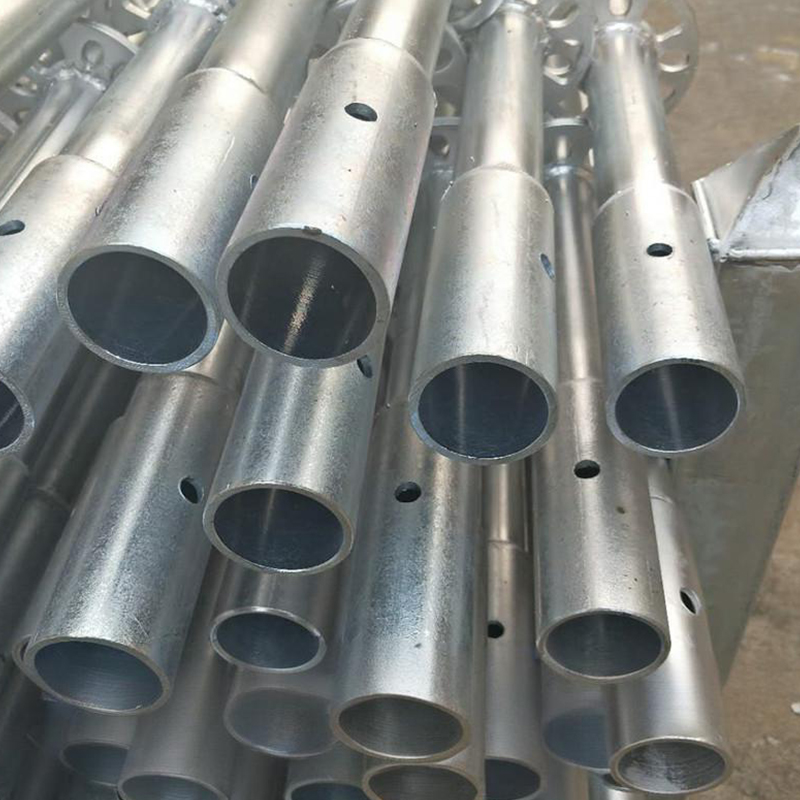

Vertical Posts: These are the "legs"—Quick Pin-Lock Raya Scaffold usually galvanized steel (some light ones are aluminum) about 1-2m long. They have rows of holes every 15cm—those are where the crossbar latches click in. The top and bottom have slots to attach the adjustable bases.
Quick-Latch Crossbars: The star of the show. Each end has a spring-loaded metal latch—when you push the crossbar into a post’s hole, Heavy-Duty Raya Pin-Lock Scaffolding System the latch pops out to lock it. To take it apart, you just press the latch in with your finger and pull the crossbar free. No fighting with stuck bolts.
Adjustable Bases: Plastic or metal bases with a threaded rod (twist to adjust height). They have a wide flat bottom so they don’t sink into soft ground—super handy for outdoor events.
Diagonal Braces: These are like the "supports" for the frame.Steel Quick-Assembly Scaffold They also have quick latches—you hook them between posts (at a 45° angle) to stop the frame from leaning. Even for indoor stages, adding a few braces makes it way more stable.
2. Materials—Tough and Low-Maintenance
Most are made of galvanized steel—this stuff doesn’t rust, even if it rains a little at an outdoor event. The aluminum versions are lighter (easy to carry to small venues like community centers), but they’re better for lighter loads (just stage floors and small lights). The latches have a smooth coating so they don’t get stuck with dust, Easy Quick Install Scaffolding and you can wipe them down with a cloth after use—no extra maintenance needed.
III. How to Pick One & Set It Up (Practical Tips)
1. Picking the Right One—Don’t Overcomplicate It
Check the Load: If you’re just building a simple stage floor with no heavy gear, a light-duty aluminum set works. If you’re hanging lights or a small backdrop, go for galvanized steel—make sure the rated load is at least 1.2 times what you’re putting on it (safety first, always).
Match the Size: Measure your stage area first. Most brands sell "kits"—like a 10-post, 16-crossbar kit that makes a 5m×3m stage. If you need a bigger one, just buy extra posts and crossbars—they all fit together since it’s standard.
2. Setting It Up—3 Super Easy Steps
Step 1: Lay the Bases: Mark where each post goes (space them 1.5-2m apart—use a tape measure to keep it even). Put the adjustable bases down and twist them to roughly the same height (use a level to get close—you can fix later).
Step 2: Build the Frame: Screw the vertical posts into the bases. Then grab a crossbar, line up the latch with a post’s hole, push until it clicks—done. Do the same for the other crossbars (horizontal first, then diagonal braces). A tip: start with one corner and work your way out—faster than jumping around.
Step 3: Level It & Add the Floor: Use a level to check if the frame’s flat. Twist the adjustable bases to fix any uneven spots.
transparent;"> Then lay stage panels or plywood on top—secure them with small screws so they don’t slide.
3. Things to Watch For
Don’t skip the diagonal braces—even a small stage will lean if you forget them.
Make sure the latches "click" when you push the crossbar in—if they don’t, check if the post hole is dirty (wipe it out with a rag).
After setting up, give the frame a shake—if it wobbles, add more braces or check that all latches are locked.
IV. Where You’ll See It Most
Rush Events: Pop-up concerts, street performances, or corporate events where you only have a couple hours to set up.
Small Venues: Schools, community centers, or bars—places where you don’t have a big crew, so fast assembly matters.
Outdoor Gigs: Food festivals, local fairs, or park concerts—its adjustable bases handle grass/dirt, and the quick latches mean you can take it down fast if it rains.
It’s basically the "lazy person’s" stage frame in the best way—no tools, no frustration, just quick, solid setup. That’s why event crews reach for it when they’re up against the clock.
